TE Connectivity AMP Connectors 1-5745968-5 — D-Sub Cable Assemblies

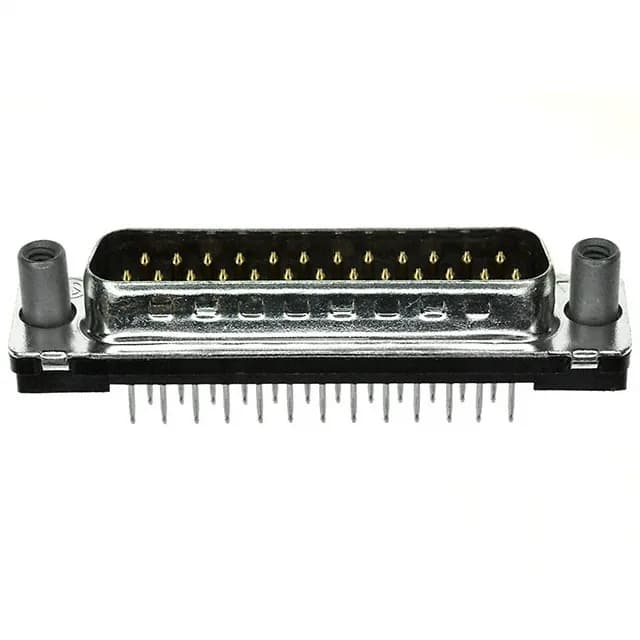

TE 1-5745968-5 AMPLIMITE HD-20 D-Sub Plug, 25 Pos, 6A

MPN1-5745968-5
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 1-5745968-5, 25 positions, 2 rows, vertical solder, through hole, 6A, 125V, steel shell, tin plated, gold flash contacts.

$9.7600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5745968-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-5745968-5 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

1-5745968-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions25
Contact finish thicknessFlash

Product details

25-Position D-Sub Plug, Vertical Solder Termination

The TE Connectivity 1-5745968-5 is a 25-position D-Sub plug with male pins from the AMPLIMITE HD-20 series. The connector carries a steel shell with tin plating and grounding indents, providing a continuous shield path from the cable braid to the chassis ground.

Shell, Shielding, and Screwlock Details

The shell is steel with tin plating, giving the connector a robust EMI shield when mated with a corresponding female D-sub that has a metal shell. The flange features female screwlocks with 4-40 thread on the mating side, which is the standard UNC thread for DB-25 panel-mount applications. The screwlocks secure the mated pair against vibration and ensure the shield ground is maintained.

Ratings and Contact System

Rated 6A per contact at 125V, the 1-5745968-5 handles signal-level and moderate power loads across its 25 circuits.

For BOM matching, the 25-position count and DB-25 shell layout are the primary fit criteria.

Frequently asked questions

Where can I buy 1-5745968-5 and how do I get a price?

Submit a request for quote to confirm current availability and pricing for your BOM quantity.

Does 1-5745968-5 have a metal shell and is it shielded?

Yes, the shell is steel with tin plating, and the connector includes grounding indents on the mating face to bleed shield current, providing an effective EMI shield when mated with a metal-shell female D-sub.

What is the thread size of the female screwlock on 1-5745968-5?

The flange features female screwlocks with 4-40 thread on the mating side, the standard UNC thread for DB-25 panel-mount connectors.
