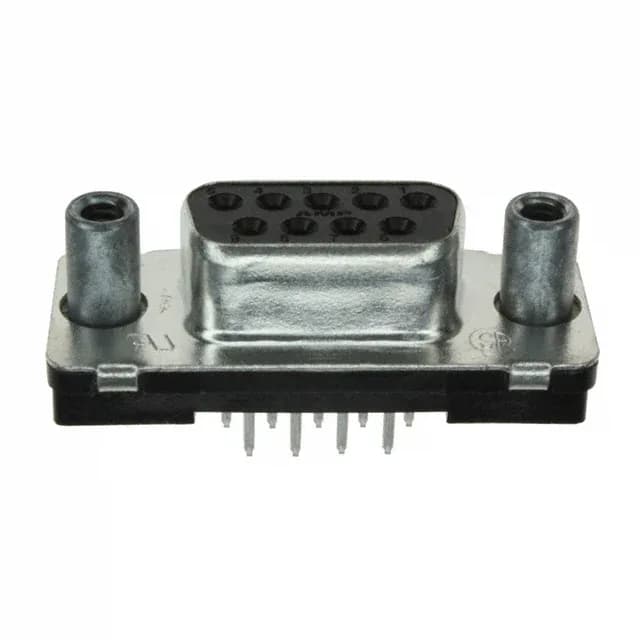

TE AMPLIMITE HD-20 1-5747150-3, 9-Pos D-Sub Receptacle, 6A

MPN1-5747150-3
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, steel shell, UL94 V-0.

$6.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5747150-3 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

1-5747150-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions9
Contact finish thicknessFlash

Product details

It carries 6A per contact at 125V, with the current rating typical for a standard-density DB-9 — the limiting factor is pin density, not contact capability. The steel shell with tin plating provides basic EMI shielding, and the female screwlock (4-40) on the mating side accepts jackscrews from the plug for a vibration-resistant mate.

The gold flash contact finish on phosphor bronze contacts suits occasional mating cycles. For applications requiring frequent connect/disconnect duty, a thicker gold plating is preferred.
