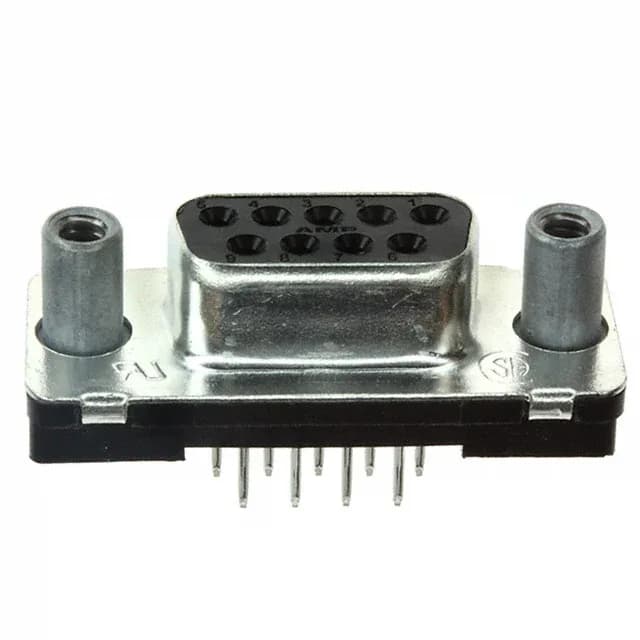

TE AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold 30.0µin contacts, female screwlock 4-40, black polyester shell.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyester |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
The mating-side female screwlock accepts a 4-40 jack-screw, giving a positive mechanical lock to the mating plug. Two rows, 9 positions total — the pinout maps to the classic DE-9 layout.
6A per contact is the headline current rating. The 9-position layout and 125V voltage rating define the harness limits.
