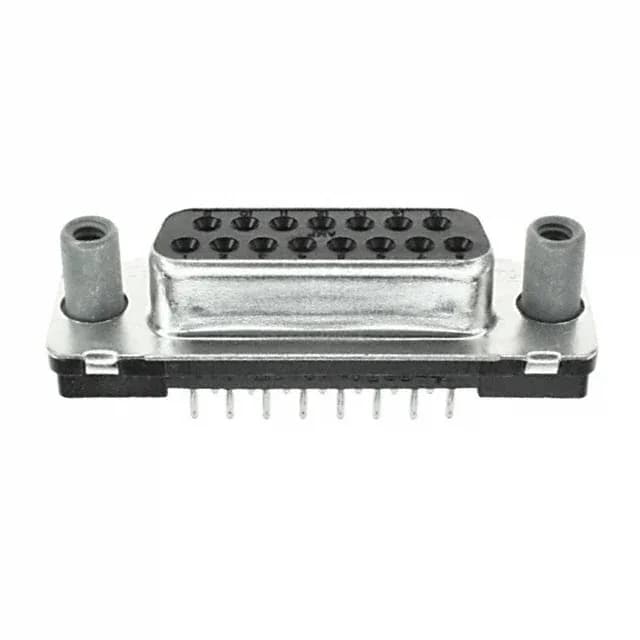

The TE Connectivity AMPLIMITE HD-20 1-5747299-4 is a 15-position D-Sub receptacle with female sockets, arranged in two rows. It is a standard DA-15 shell size (2, DA, A) connector, designed for vertical through-hole mounting with solder termination. This connector is used for signal-level interconnects in industrial control, data communications, and test equipment where a reliable, shielded D-Sub interface is required.
Rated 6A per contact at 125V — the current is per-circuit, so a fully populated 15-position connector can handle up to 6A on any single pin, though the total bundle derates with temperature.
Mates with standard D-Sub plug connectors having a shell layout (2, DA, A) — the mating half is a 15-position male D-Sub with female screwlocks (4-40) on the mating side, matching the flange feature on this receptacle. The termination is solder cup or through-hole solder; the vertical mount orientation places the connector body perpendicular to the PCB. The flange includes female screwlocks (4-40) on the mating side, allowing secure jack-screw attachment to the mating plug. Standard D-sub backshells (hoods) that fit a DA-15 shell will work, provided they clear the screwlock hardware.
