TE Connectivity AMP Connectors 1-5747301-4 — D-Sub Cable Assemblies

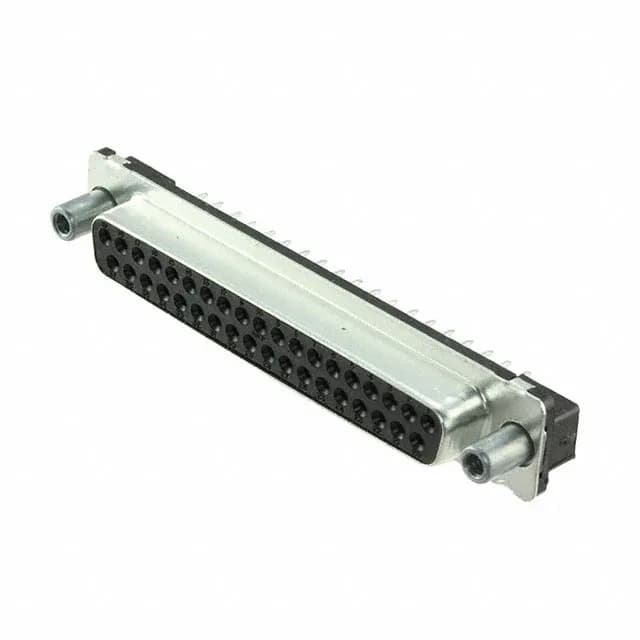

TE 1-5747301-4 AMPLIMITE HD-20 D-Sub Receptacle, 37P

MPN1-5747301-4
Active

TE Connectivity AMPLIMITE HD-20, D-Sub Receptacle, Female Sockets, 37 Positions, 2 Rows, Through Hole, Solder, 6A, 125V, Gold 30.0µin, Female Screwlock (4-40), Black, UL94 V-0.

$22.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5747301-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

1-5747301-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions37
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 1-5747301-4 is a 37-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for through-hole solder termination to a PCB. It carries 30.0µin gold-over-phosphor-bronze contacts rated 6A per circuit at 125V, with a UL94 V-0 polyester housing.

This receptacle mates with a standard AMPLIMITE HD-20 D-Sub plug (male pin) of the same shell size — 4 (DC, C) — and position count. The female screwlock (4-40) accepts a male screwlock or a standard 4-40 jack-screw on the plug side.

Frequently asked questions

Does 1-5747301-4 include screwlocks?

Yes, it comes with a female screwlock (4-40) on the mating side, ready to accept a male screwlock or jack-screw from the mating plug.

Where can I buy 1-5747301-4?

This part is sourced to order. Contact our sales team for current pricing and lead time at quote.
