TE Connectivity AMP Connectors 1-5747872-6 — D-Sub Cable Assemblies

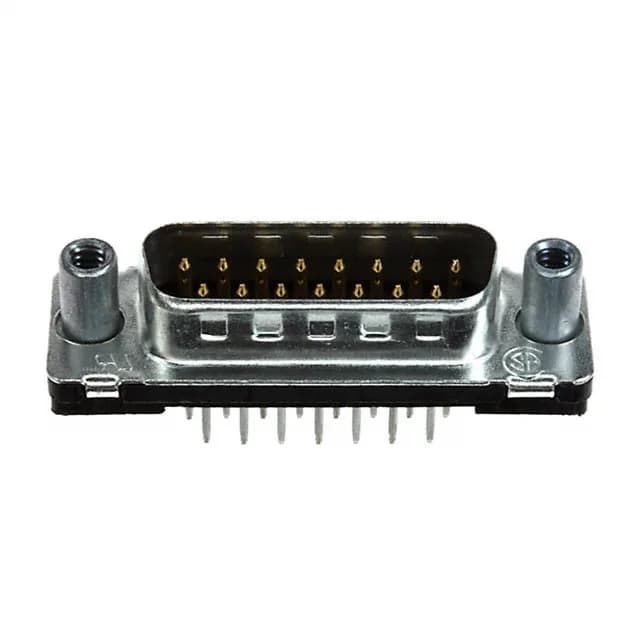

TE AMPLIMITE HD-20 1-5747872-6 D-Sub Plug, 15-Pin, 6A

MPN1-5747872-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub, Plug Male Pins, 15 Position, 2 Row, Solder, Through Hole, Gold, 6A, 125V, Female Screwlock (4-40), Black.

$9.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5747872-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5747872-6 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

1-5747872-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions15

Product details

15-Position D-Sub Plug for Panel-Mount Signal Interconnects

It carries male pins with gold contact finish, rated at 6 A per contact and 125 V, which is the standard current and voltage ceiling for a standard-density D-sub signal interconnect.

Grounding Indents and Screwlock Hardware

The flange features female screwlocks (4-40) on the mating side, which accept standard male jackscrews from the mating receptacle for panel-mount retention. This hardware is field-serviceable and allows the connector pair to be secured without tools beyond a small screwdriver.
