TE Connectivity AMP Connectors 1-640514-0

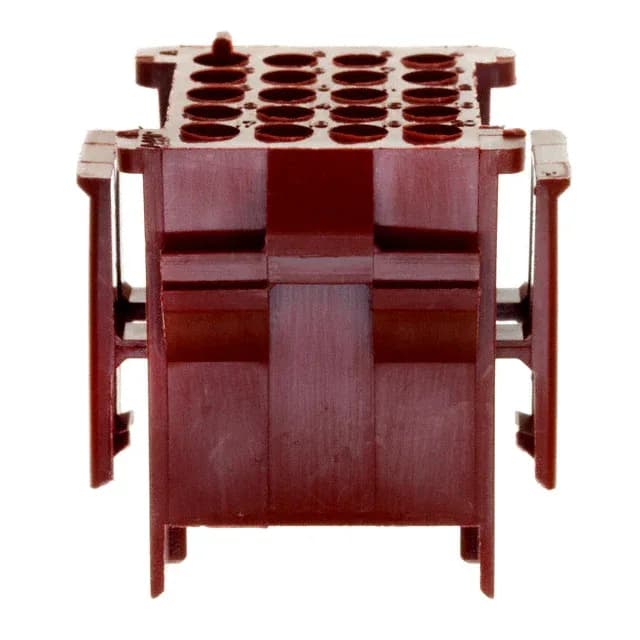

TE 1-640514-0 MR Receptacle Housing, 20 Pos, 4.20mm

MPN 1-640514-0
Active

TE Connectivity MR (Miniature Rectangular) series receptacle housing, 1-640514-0, 20 positions, 4 rows, 0.165" (4.20mm) pitch, panel mount snap-in, latch lock, black or red nylon, contacts not included.

$5.6300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMR (Miniature Rectangular)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-640514-0 specifications
ParameterValue
SeriesMR (Miniature Rectangular)
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 85°C
ColorBlack or Red
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows4
Contact terminationCrimp
Positions20

Product details

It uses a 0.165" (4.20mm) pitch across 4 rows, with a panel-mount snap-in design and latch lock retention. The housing is molded from polyamide (nylon) and is available in black or red.

The 4.20mm pitch is common for medium-current power interconnects — wide enough to handle decent wire gauges without crowding, but compact enough for multi-row layouts. With 20 positions in 4 rows, the housing gives you a 5-per-row arrangement. That row count means the mating header or plug will also be a 4-row design; a 2-row housing won't align.

Mounting and Retention

The latch lock is a positive mechanical retention feature, useful in applications where vibration or cable strain could otherwise separate the connection.

Contacts and Mating

The crimp termination allows field assembly with standard tooling.

MPN
1-640514-0
