TE Connectivity AMP Connectors 1-640520-0

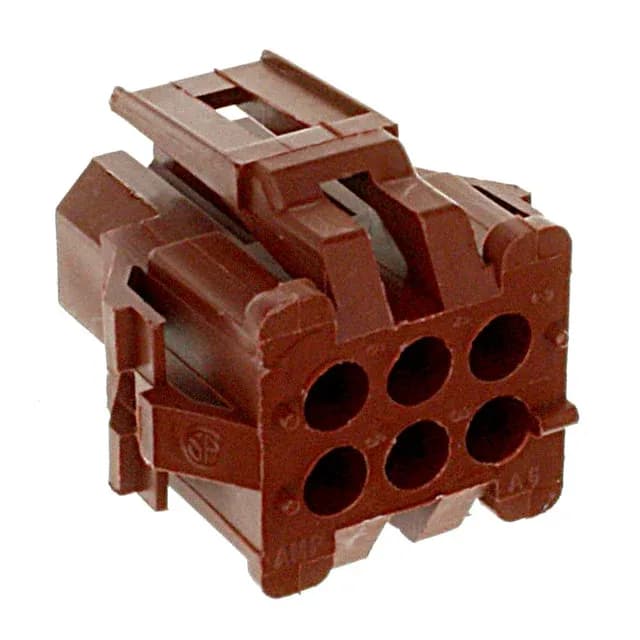

TE MR 1-640520-0 Plug Housing, 6 Pos, 4.20mm

MPN 1-640520-0
Active

TE Connectivity MR (Miniature Rectangular) series, 1-640520-0, 6-position plug housing, 4.20mm pitch, dual-row, panel mount snap-in, locking ramp, crimp termination, black or red, contacts not included.

$2.4500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesMR (Miniature Rectangular)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-640520-0 specifications
ParameterValue
SeriesMR (Miniature Rectangular)
TypeFemale Socket
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-55°C ~ 85°C
ColorBlack or Red
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows2
Contact terminationCrimp
Positions6

Product details

Housing Identity and Series Position

The TE Connectivity 1-640520-0 is a 6-position plug housing from the MR (Miniature Rectangular) series. It is a dual-row, 4.20mm-pitch housing designed for wire-to-board or wire-to-wire harness applications where a compact, polarized interconnect is needed. The housing accepts female socket crimp terminals (sold separately) and is available in either black or red. The 4.20mm pitch and row spacing are identical, giving a 4.20mm x 4.20mm grid that mates with standard MR-series pin headers.

Panel Mount and Termination

This housing mounts to a panel via snap-in features — no hardware required. The panel cutout must match the housing's snap-in geometry (refer to the product drawing for the exact hole dimensions). The crimp termination style means you attach the contacts to the wire ends first, then insert them into the housing; the locking ramp secures the mated connector pair. The insulation material carries a standard UL94 V-2 or V-0 rating (check the specific color variant).

Procurement and Lifecycle

A common procurement trap: the housing ships without contacts. The buyer must order the matching female socket crimp terminals separately — typically the TE 640550 series or equivalent. Confirm the wire gauge range and crimp tooling before committing the BOM line.

MPN
1-640520-0
