TE Connectivity AMP Connectors 1-640522-0 — Connector Housings

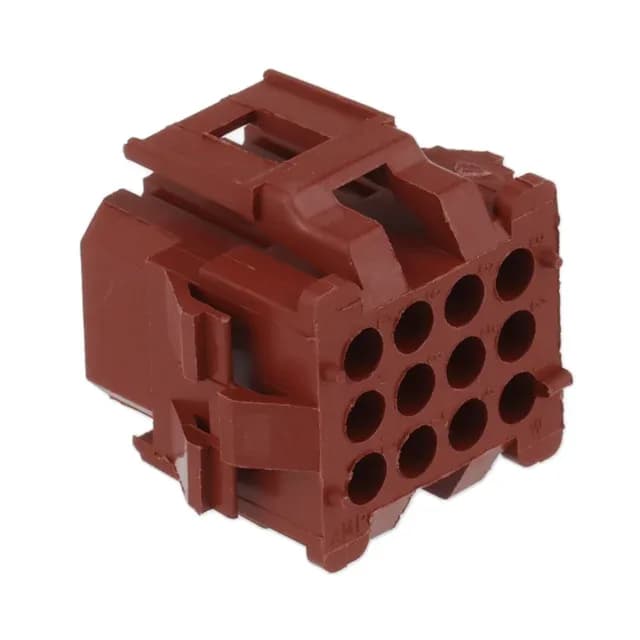

TE 1-640522-0 MR Plug Housing, 12 Pos, 4.20mm Pitch

MPN1-640522-0
Active

TE Connectivity MR (Miniature Rectangular) plug housing, 12 positions, 3 rows, 0.165" (4.20mm) pitch, panel mount snap-in, locking ramp, crimp termination, female socket contacts, black or red, -55°C to 85°C.

$3.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-640522-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMR (Miniature Rectangular)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-640522-0 specifications
ParameterValue
SeriesMR (Miniature Rectangular)
TypeFemale Socket
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-55°C ~ 85°C
ColorBlack or Red
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows3
Contact terminationCrimp
Positions12

Product details

The TE 1-640522-0 is a 12-position plug housing from the MR (Miniature Rectangular) series, pitched at 0.165" (4.20mm) across three rows with the same 0.165" row spacing. It's the cable-side half — accepts female socket crimp terminals and mounts to a panel via snap-in clips, with a locking ramp that holds the mate against vibration.

Wiring It Up — What You Need to Order Separately

This housing ships empty — contacts are not included. You'll need to source the matching female crimp terminals for the MR series separately.

Frequently asked questions

Does 1-640522-0 include contacts?

No — the listing explicitly states contacts are not included. You must order the matching female crimp terminals separately.
