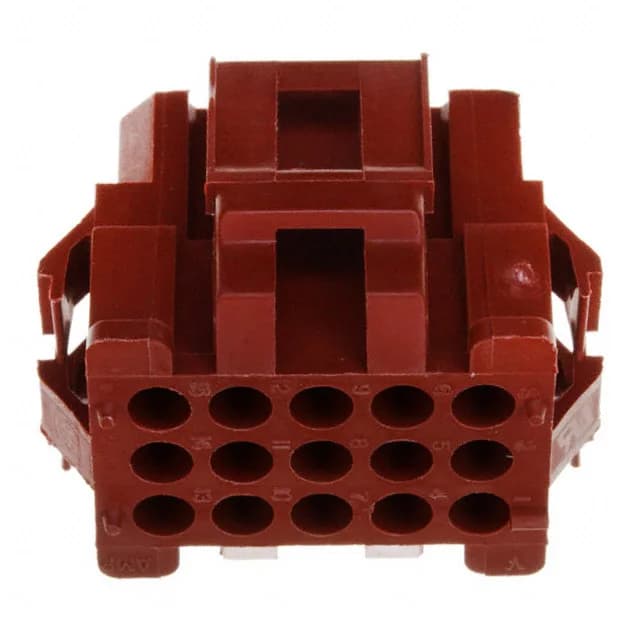

TE Connectivity MR (Miniature Rectangular) series, 1-640523-0, plug housing, 15 positions, 3 rows, 0.165" (4.20mm) pitch, panel mount snap-in, locking ramp, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Female Socket |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 85°C |
| Color | Black or Red |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.165\" (4.20mm) |
| Package | Bulk |
| Row spacing | 0.165\" (4.20mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 15 |
The panel-mount snap-in feature lets you fix the housing to a chassis cutout so the connector stays put when you unplug the mating half, which saves wear on the wiring harness over repeated service cycles.
This housing ships without contacts — order the matching MR series female crimp terminals separately. The crimp termination accepts the wire gauge specified for the MR contact family.
No — the 1-640523-0 is a plug housing only; contacts are not included and must be ordered separately as MR series female crimp terminals.
The pitch is 0.165" (4.20 mm) between contact positions, with the same 4.20 mm row spacing.
