TE Connectivity AMP Connectors 1-6450550-5

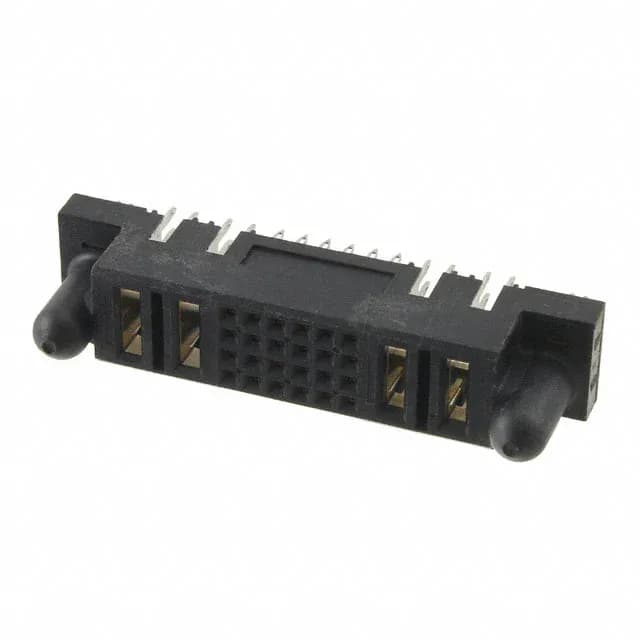

TE 1-6450550-5 MULTI-BEAM XL Receptacle, 26 Pos, Press-Fit

MPN 1-6450550-5
Active

TE Connectivity MULTI-BEAM XL receptacle, 1-6450550-5, 26 positions (24 signal + 4 power), 0.100" (2.54mm) pitch, 4 rows, press-fit, gold 30µ" contacts, UL94 V-0, black housing.

$7.6400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMULTI-BEAM XL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-6450550-5 specifications
ParameterValue
SeriesMULTI-BEAM XL
MountingThrough Hole
Connector typeReceptacle, Female Sockets and Blade Sockets
Operating temperature-20°C ~ 105°C
ColorBlack
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesBoard Lock, Guide Pin
TerminationPress-Fit
Contact finishGold
Rows4
Positions26
Contact layout, typical24 Signal, 4 Power
Contact finish thickness30.0µin (0.76µm)

Product details

Backplane Power Delivery: 26-Position MULTI-BEAM XL Receptacle

The TE Connectivity 1-6450550-5 is a 26-position receptacle from the MULTI-BEAM XL series, designed for high-current backplane power distribution. It uses a hybrid contact arrangement — 24 signal positions and 4 blade-type power sockets — so a single connector handles both logic and bus-level current on the same footprint. Press-fit termination eliminates soldering, a real advantage on a multilayer backplane where thermal stress from wave soldering can warp the board or crack vias.

Press-Fit Termination and Board Retention

That's the standard choice for high-reliability backplanes where rework access is limited and thermal cycling from soldering is a risk. With 26 positions across 4 rows, the insertion force is substantial; the guide pin takes the alignment load, not the signal pins.

For the 4 power blade sockets, the gold plating handles the higher current without the fretting corrosion you'd get with tin under vibration.

Operating Temperature and Environmental Range

Rated for -20°C to 105°C.
