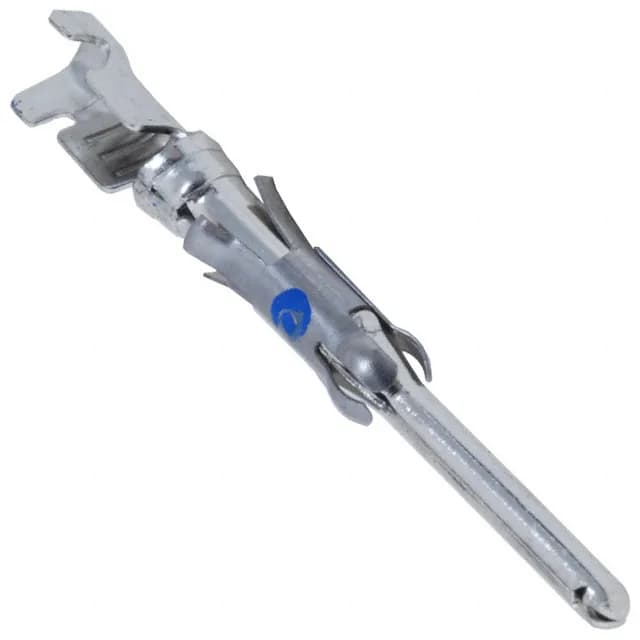

TE Connectivity Multimate III+ series, 1-66099-5, stamped pin contact, 16-18 AWG, tin-plated brass, 50.0µin finish, crimp termination, bulk packaging.
| Parameter | Value |
|---|---|
| Type | Stamped |
| Series | Multimate III+ |
| Wire gauge | 16-18 AWG |
| Contact material | Brass |
| Package | Bulk |
| Pin or socket | Pin |
| Contact finish | Tin |
| Contact termination | Crimp |
| Contact finish thickness | 50.0µin (1.27µm) |
It is the male half of the contact pair, intended for use in the pin side of the Multimate III+ connector system. This is a bulk-packaged, loose-piece contact — typical for harness assembly where contacts are crimped individually and inserted into the housing.
The 1-66099-5 accepts 16-18 AWG wire for crimp termination.
The contact finish is tin, with a thickness of 50.0µin (1.27µm) over a brass base material.
The 1-66099-6 is a direct functional equivalent within the same Multimate III+ series — same wire gauge, finish, and plating thickness, also active. For a wider wire range (14-18 AWG), consider the 1-66361-2 or 1-66602-1.
