TE Connectivity AMP Connectors 1-6609985-9 — USB, Type-C & HDMI Connectors

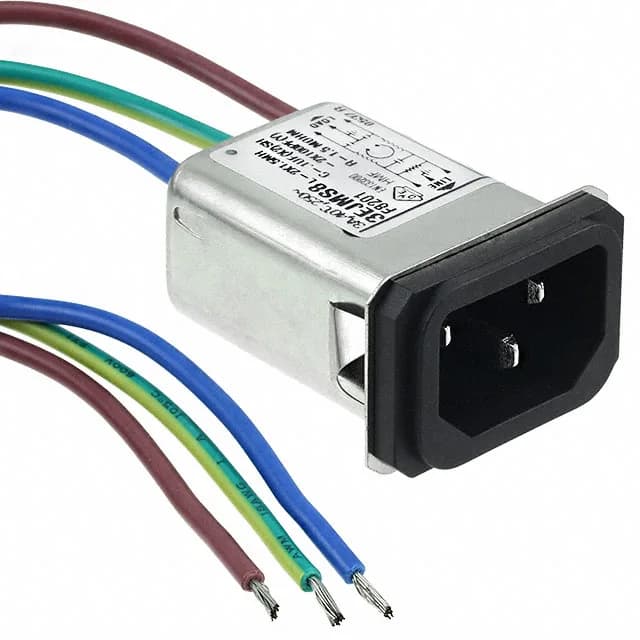

TE Connectivity 1-6609985-9, EEJ Corcom IEC 320-C14 Filter

MPN1-6609985-9
Obsolete

TE Connectivity EEJ Corcom series, IEC 320-C14 receptacle with male blades, filtered (EMI, RFI) commercial, 3 positions, 3 A, panel mount snap-in, wire leads termination.

$9.1859Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-6609985-9 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1-6609985-9 specifications
ParameterValue
SeriesEEJ, Corcom
Filter typeFiltered (EMI, RFI) - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Current rating - filter3A
Panel cutoutVariable Size
Approval agencyCSA, UL, VDE
PackageTray
TerminationWire Leads
Panel thickness0.031\" ~ 0.068\" (0.79mm ~ 1.73mm)
Accomodates a fuseNo
Positions3

Product details

The TE Connectivity 1-6609985-9 is a filtered IEC 320-C14 receptacle from the EEJ Corcom series — a male-blade inlet with an integrated commercial-grade EMI/RFI filter. It carries 3 positions (line, neutral, ground) and is rated for 3 A through the filter stage. CSA, UL, and VDE approvals cover the regulatory side for North American and European markets.

Mounting and Termination Notes

Panel mount snap-in — the inlet clips into a chassis cutout without hardware, with an accepted panel thickness range of 0.031" to 0.068" (0.79 mm to 1.73 mm). Termination is via wire leads.

Frequently asked questions

Does 1-6609985-9 accommodate a fuse?

No, this variant does not accommodate a fuse — it is a filtered inlet only, with no fuse holder integrated into the housing.
