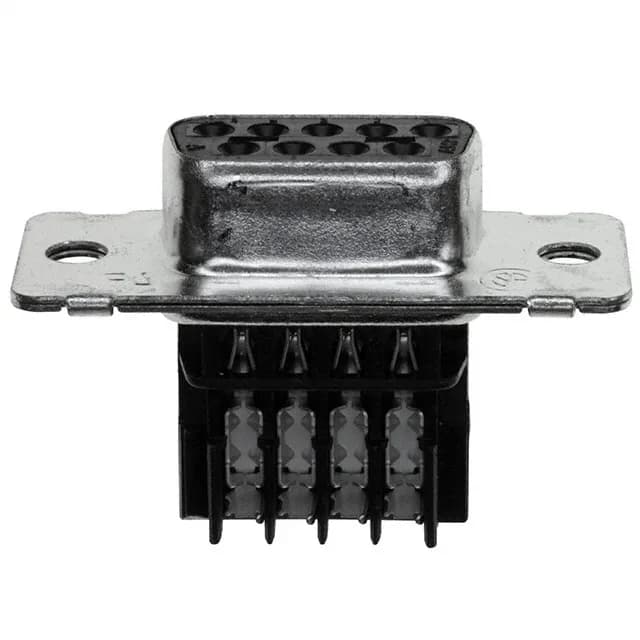

TE Connectivity AMPLIMITE HDE-20 D-Sub receptacle, 9 positions, 2 rows, IDC termination for 22-26 AWG discrete wire, 30.0µin gold contacts, 250V rating, free-hanging, black shell.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDE-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 22-26 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | IDC, Discrete Wire |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
It accepts 22-26 AWG wire, making it a field-terminable option for signal harnesses where soldering or crimping is impractical. Rated at 250V, the connector uses a glass-filled thermoplastic housing rated UL94 V-0, with a steel shell finished in tin. The free-hanging (in-line) mount and unthreaded flange feature suit it for panel-mount or cable-to-cable applications where the mating half provides the retention.
