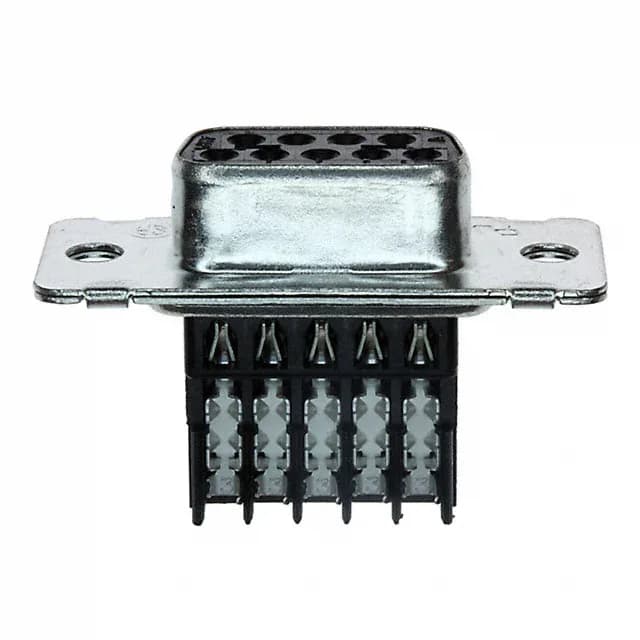

TE 1-745491-9 AMPLIMITE HDE-20 D-Sub Receptacle, 9 Pos IDC

MPN1-745491-9
Active

TE Connectivity AMPLIMITE HDE-20, D-Sub Receptacle, Female Sockets, 9 Positions, 2 Rows, IDC Termination, 20-22 AWG, Gold Contact Finish 30.0µin, 250V, Free Hanging.

$8.5900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745491-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-745491-9 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge20-22 AWG
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745491-9 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

9-Position D-Sub Receptacle with IDC Termination

The shell size is DE (E), the standard 9-position D-sub footprint, and the housing is free-hanging (in-line) with unthreaded flange holes for panel-mount screws.

Wire Gauge and Current Derating

The 1-745491-9 terminates 20-22 AWG discrete wire via IDC contacts. The current rating is not a single fixed value — it varies by wire gauge, as the smaller 22 AWG conductor has higher resistance and will heat more under load than 20 AWG. For a harness designer, this means the actual current per contact depends on the wire size selected; the 250V voltage rating is consistent across the range.

The free-hanging design allows the connector to be used as a cable-end receptacle without a backshell, though a backshell kit can be added for strain relief and shielding termination if the application requires it.

Frequently asked questions

Where can I buy the TE 1-745491-9 D-sub receptacle?

The 1-745491-9 is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time against your BOM quantity.

What is the wire gauge range for 1-745491-9?

The 1-745491-9 accepts 20-22 AWG discrete wire terminated via IDC contacts. The current rating varies by wire gauge — 20 AWG carries more current than 22 AWG at the same temperature rise.

What is the mating connector for 1-745491-9?

The 1-745491-9 mates with any standard DE-9 D-sub plug (male) having the same shell size and layout. The unthreaded flange accepts 4-40 or M3 jack-screws for panel mounting.
