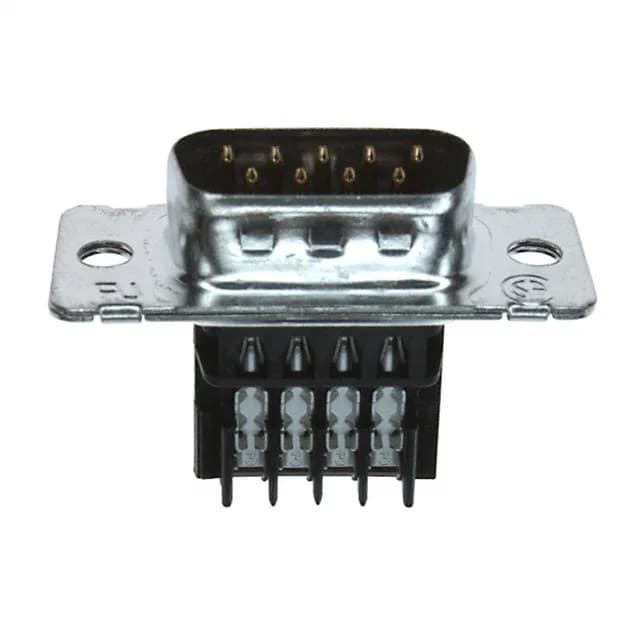

TE 1-745492-9 AMPLIMITE HDE-20 D-Sub Plug, 9 Pos, IDC

MPN1-745492-9
Active

TE Connectivity AMPLIMITE HDE-20 D-Sub, Plug, Male Pins, 9 Positions, 2 Rows, IDC Termination, 20-22 AWG, Gold Flash Contacts, 250V, Free Hanging, Black Housing, UL94 V-0.

$7.8200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745492-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745492-9 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge20-22 AWG
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745492-9 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thicknessFlash

Product details

D-Sub IDC Plug for 20-22 AWG — No Crimp Tool Needed

The male pins are gold flash over phosphor bronze, rated for signal-level current that varies with wire gauge.

Wiring and Termination — IDC Saves the Crimp Changeover

This plug terminates via IDC — the wire is pressed into insulation-displacement slots, so you skip the crimp applicator changeover. The slot geometry is sized for 20-22 AWG; straying outside that range risks poor contact or insulation damage. The free-hanging (in-line) mount mates with a panel-mount or cable-mount D-sub receptacle with the DE-9 shell layout. The unthreaded flange accepts standard D-sub hardware (slide locks or jackscrews) for retention.

Frequently asked questions

What wire gauge works with the 1-745492-9 IDC termination?

The IDC slots are designed for 20-22 AWG discrete wire. Using wire outside that range may not achieve proper insulation displacement or contact retention.

What is the mating connector for 1-745492-9?

This plug mates with a standard DE-9 (E shell) D-sub receptacle with female sockets. The unthreaded flange accepts standard D-sub hardware for locking.
