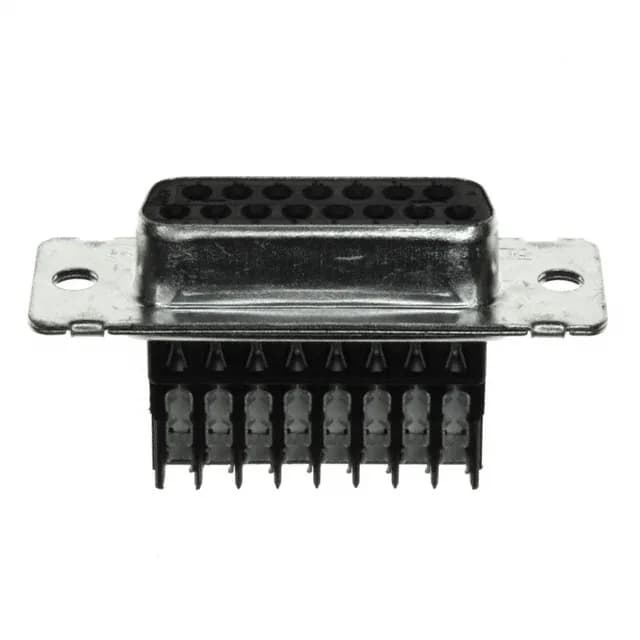

TE Connectivity AMPLIMITE HDE-20 series, 1-745493-4, D-Sub receptacle, 15 positions, 2 rows, IDC termination, 22-26 AWG, gold-plated contacts, 250V, UL94 V-0, black.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDE-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 22-26 AWG |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | IDC, Discrete Wire |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
This connector terminates via IDC (Insulation Displacement Connection) to discrete wire, not individual crimp contacts. For a 15-position D-Sub, that saves a trip back to the bench with a crimp tool. The wire range is 22-26 AWG, so it handles standard signal wiring for serial, parallel, or control interfaces.
Yes, the 1-745493-4 is ROHS3 Compliant per the manufacturer's listing.
This IDC receptacle accepts 22-26 AWG discrete wire. The IDC slot geometry is sized for that range — using wire outside it risks an unreliable termination.
