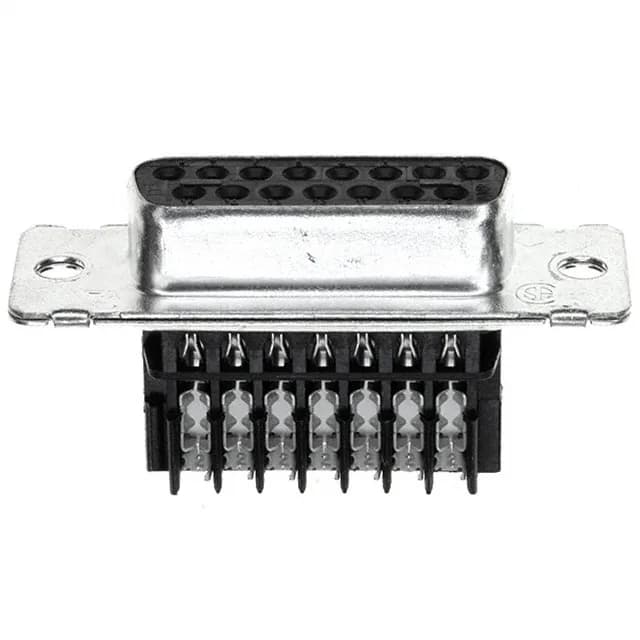

TE AMPLIMITE HDE-20 1-745493-5, 15-Pos D-Sub IDC Receptacle

MPN1-745493-5
Active

TE Connectivity AMPLIMITE HDE-20 D-Sub receptacle, 15 positions, 2 rows, IDC discrete-wire termination, 22-26 AWG, gold-plated phosphor bronze contacts, free-hanging, black UL94 V-0 housing.

$12.8300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745493-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HDE-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745493-5 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge22-26 AWG
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745493-5 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thickness1.00µin (0.025µm)

Product details

D-Sub IDC Receptacle for Discrete-Wire Harnesses

Gold-plated phosphor bronze contacts rated for signal-level duty, with the current capacity varying by the wire gauge selected — the IDC termination itself sets the limit, not the contact beam.

This saves a crimp operation per wire in the harness build but demands consistent wire diameter and insulation thickness across the bundle; mix gauges only within the stated range. The 1.00 µin (0.025 µm) gold finish on the contacts is a flash plating, suited for the limited mating cycles typical of a field-installed cable assembly rather than a repeatedly disconnected test fixture.

Operating Range and Flammability Rating

The steel shell with tin plating provides basic EMI shielding and mates with the standard D-Sub grounding indents on the plug side.

Frequently asked questions

Where can I buy 1-745493-5 available via RFQ confirmation?

Submit an RFQ for your target quantity and lead time.

What is the pinout of 1-745493-5?

The 1-745493-5 is a 15-position D-Sub receptacle with female sockets arranged in two rows following the standard DA shell layout. The pin numbering and signal assignment depend on the specific cable assembly design; the connector itself does not pre-assign functions to positions.
