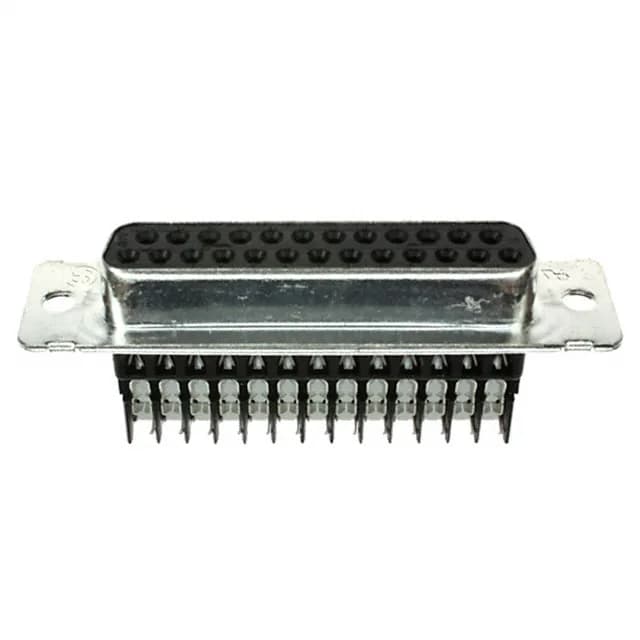

TE 1-745495-8 AMPLIMITE HDE-20 D-Sub Receptacle, 25-Pos IDC

MPN1-745495-8
Active

TE Connectivity AMPLIMITE HDE-20, 1-745495-8, D-Sub receptacle, 25 positions, 2 rows, IDC termination, 22-26 AWG, Gold 30.0µin contacts, 250V, UL94 V-0

$13.7100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745495-8 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HDE-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745495-8 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge22-26 AWG
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745495-8 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

The free-hanging (in-line) mount and unthreaded housing/shell flange mean this is a cable-end receptacle, not a panel-mount or PCB-mount part. It mates with any standard DB-25 D-sub plug that has a matching shell layout (3, DB, B).

IDC Termination — What It Means for Harness Assembly

This makes the 1-745495-8 a production-friendly choice for medium-volume harness builds where a simple hand or pneumatic press tool replaces a soldering station. The 22-26 AWG range covers common signal-level wire gauges used in serial data cables, instrumentation harnesses, and control panel wiring.

Frequently asked questions

What wire gauge does 1-745495-8 accept?

The 1-745495-8 accepts 22-26 AWG discrete wire for its IDC termination.

Is 1-745495-8 RoHS compliant?

Yes, the 1-745495-8 is RoHS Compliant.

What connector mates with 1-745495-8?

It mates with any standard DB-25 D-Sub plug having shell layout 3 (DB, B) — the industry-standard 25-position D-sub footprint.
