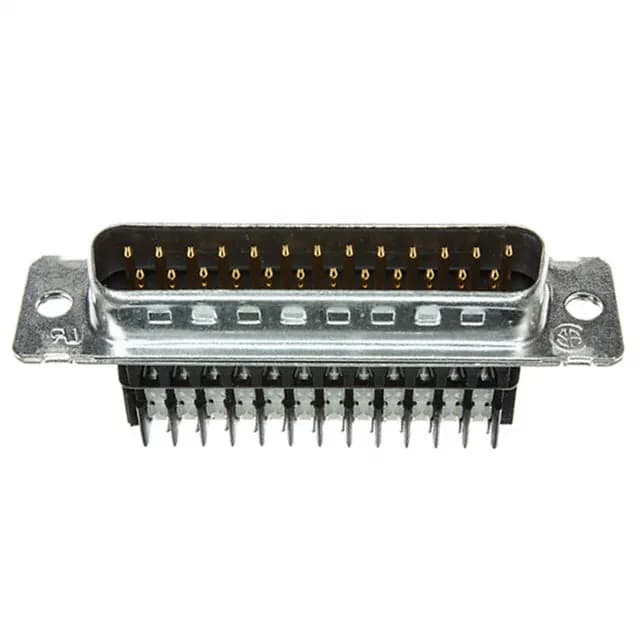

TE 1-745496-9 AMPLIMITE HDE-20 D-Sub Plug, 25 Pos IDC

MPN1-745496-9
Active

TE Connectivity AMPLIMITE HDE-20, D-Sub Plug, Male Pins, 25 Positions, 2 Rows, IDC Termination, 26-30 AWG, Gold 30.0µin Contacts, Free Hanging, UL94 V-0, Black.

$14.3500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745496-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745496-9 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge26-30 AWG
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745496-9 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

Wiring a 25-Pin D-Sub Cable Assembly with IDC Termination

It carries male pins in a 2-row DB (shell size 3) layout, mates with a standard 25-position D-sub receptacle housing, and is rated for 250V.

IDC Termination: No Crimping, Just Punch Down

Mounting and Mating: Free-Hanging Plug to Panel Receptacle

The plug is free-hanging (in-line), meaning it terminates a cable that mates to a panel-mount or chassis-mount D-sub receptacle. The housing/shell has unthreaded flange features — it uses the standard D-sub shell size 3 (DB, B) layout, so it accepts standard D-sub backshells and jack-screw hardware for retention.

Frequently asked questions

Is 1-745496-9 the correct part for a 25-pin D-sub IDC cable assembly?

Yes, this is a 25-position D-sub plug with male pins, IDC termination for 26-30 AWG discrete wire, designed for building a 25-pin D-sub cable assembly that mates with a standard 25-position D-sub receptacle (DB-25 shell size).

Is 1-745496-9 compatible with standard D-sub backshells?

Yes, the shell uses the standard DB (shell size 3) layout with unthreaded flange features, so it accepts standard D-sub backshells and jack-screw hardware designed for DB-25 connectors.
