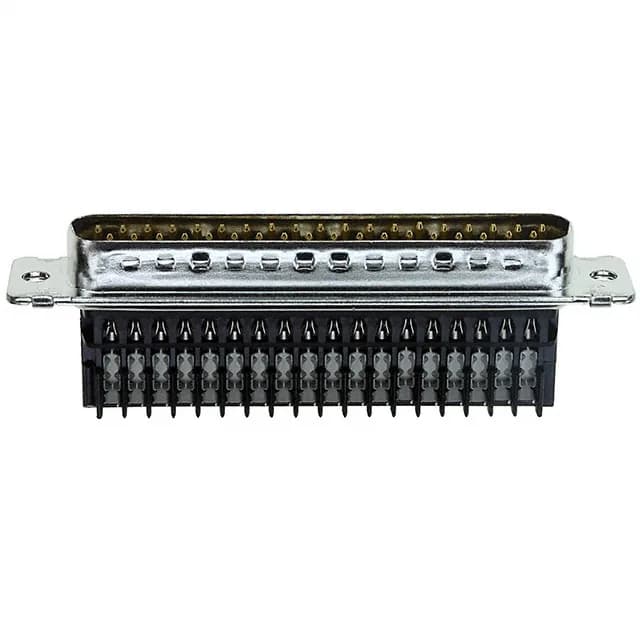

TE AMPLIMITE HDE-20 1-745498-5, D-Sub Plug 37 Pos IDC

MPN1-745498-5
Active

TE Connectivity AMPLIMITE HDE-20 series, D-Sub plug, 37 position, 2-row, IDC termination for 22-26 AWG discrete wire, gold-plated phosphor bronze contacts, steel shell with tin plating, UL94 V-0 rated housing.

$13.9000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745498-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745498-5 key specifications
ParameterValue
SeriesAMPLIMITE HDE-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current ratingVaries by Wire Gauge
Wire gauge22-26 AWG
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled

All specifications

1-745498-5 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationIDC, Discrete Wire
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37

Product details

What This 37-Position D-Sub Plug Does

The male pins are gold-plated over phosphor bronze, and the steel shell carries tin plating with grounding indents for shield continuity. The glass-filled thermoplastic housing is rated UL94 V-0.

The IDC termination accepts 22-26 AWG discrete wire — you strip the wire, lay it into the slot, and press the cover down to pierce the insulation. No crimp tool, no solder iron. The gold-plated contact beam makes gas-tight connection to the conductor. The unthreaded flange housing accepts standard D-Sub hardware for panel or backshell mounting.

Grounding Indents and Shell

The shell size 4 (DC, C layout) matches the standard 37-position receptacle footprint. If your assembly requires shield continuity, this plug has the indents built in.

Frequently asked questions

What is the wire gauge range for the 1-745498-5?

The 1-745498-5 accepts 22-26 AWG discrete wire for its IDC termination. The current rating varies by the wire gauge used.

Does the 1-745498-5 have grounding indents?

Yes, the steel shell includes grounding indents for shield continuity when mated with a standard D-Sub receptacle.

Is the 1-745498-5 RoHS compliant?

Yes, it is ROHS3 compliant.
