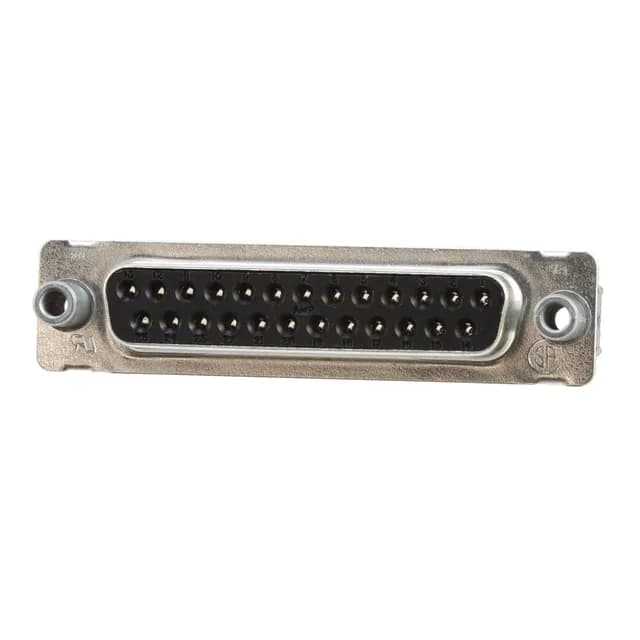

TE Connectivity 1-745967-4 AMPLIMITE HD-20 D-Sub Receptacle

MPN1-745967-4
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, 6A, 125V, through-hole solder, gold-plated contacts, female screwlocks, UL94 V-0.

$9.7600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-745967-4 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-745967-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

1-745967-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 1-745967-4 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for standard-density signal interconnect in industrial control, instrumentation, and data-communication equipment.

The steel shell with tin plating provides EMI shielding typical of the D-sub form factor — the grounding indents in the shell mate with the connector face to bleed shield current before it reaches the signal pins. The female screwlock (4-40) on the receptacle side accepts the mating male screwlock from the plug, securing the pair without additional hardware.

Frequently asked questions

Is 1-745967-4 RoHS compliant?

No, the 1-745967-4 is RoHS non-compliant. For RoHS-compliant alternatives, the packaging variants 3-1393480-8 (Box) and 8-1437045-3 (Bulk) share the same AMPLIMITE HD-20 series and specifications.

What is the difference between AMPLIMITE HD-20 and standard D-sub?

The AMPLIMITE HD-20 series is TE Connectivity's standard-density D-subminiature line — the 1-745967-4 uses the DB-25 shell layout with 25 positions in 2 rows, rated 6A per contact at 125V, with gold-plated contacts and a UL94 V-0 polyester housing. The form factor, footprint, and pinout are standard D-sub, interchangeable with any DB-25 receptacle.
