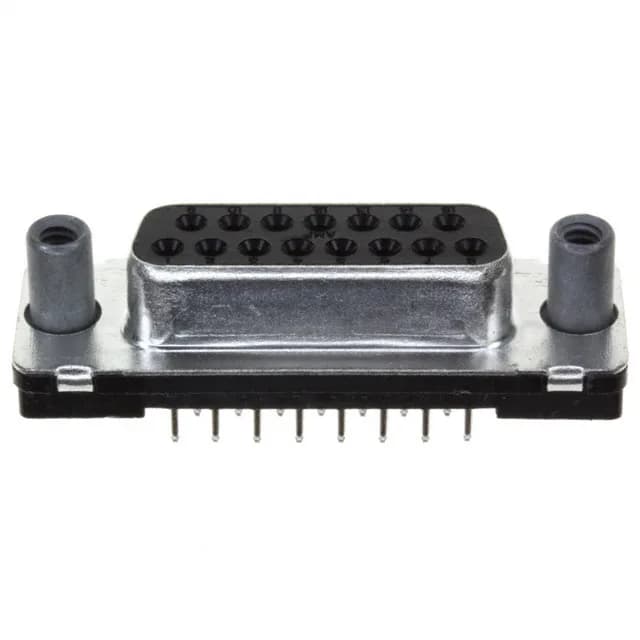

TE AMPLIMITE HD-20 1-747299-4, 15-Pos D-Sub Receptacle, 6A

MPN1-747299-4
Active

TE Connectivity AMPLIMITE HD-20 D-sub receptacle, 15 positions, DA shell size, 6 A, 125 V, through-hole solder, 30.0 µin gold plating, UL94 V-0.

$9.1700Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-747299-4 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

1-747299-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

15-Position D-Sub Receptacle for Signal I/O

The TE Connectivity AMPLIMITE HD-20 1-747299-4 is a 15-position D-sub receptacle with female sockets, arranged in two rows in the standard DA shell size. It is a through-hole solder-mount connector designed for signal-level I/O in industrial control, data communications, and instrumentation equipment where a reliable, field-serviceable interface is required. The mating-side female screwlock (4-40) provides a threaded retention point for the mating plug, keeping the pair engaged under vibration.

Comparing Shell Sizes in the AMPLIMITE HD-20 Family

This 15-position DA-size receptacle sits between the 9-position DE-size (1-747150-4) and the 25-position DB-size (1-745967-4) in the AMPLIMITE HD-20 series.

Frequently asked questions

Is 1-747299-4 RoHS compliant?

No, the 1-747299-4 is listed as RoHS non-compliant. Verify your application's regulatory requirements before specifying this part for RoHS-restricted regions.

What is the pin configuration of 1-747299-4?

The 1-747299-4 is a 15-position D-sub receptacle with two rows of female sockets in the standard DA shell layout. The pinout follows the industry-standard DA-15 assignment — confirm your mating plug's wiring diagram for signal mapping.

Is 1-747299-4 standard density or high density?

The 1-747299-4 is a standard-density D-sub connector in the AMPLIMITE HD-20 series. The 15 positions in two rows at the standard DA shell pitch distinguish it from high-density variants that pack more contacts into the same shell size.
