TE Connectivity AMP Connectors 1-770253-0 — Crimp Contacts & Pins

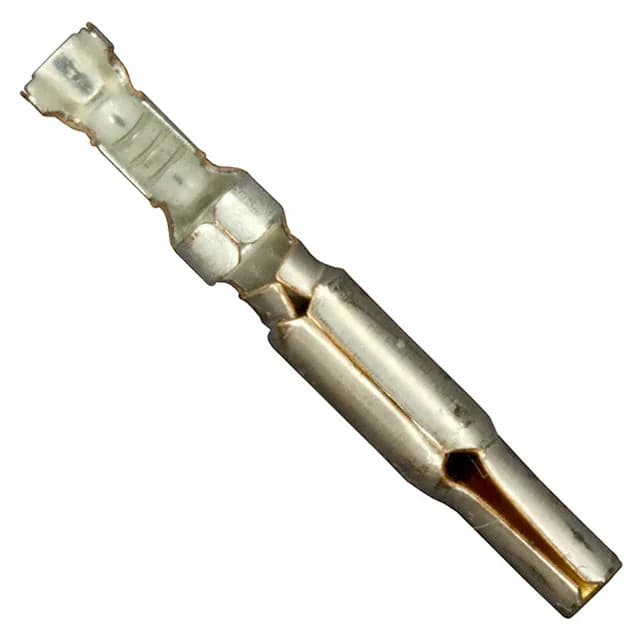

TE Connectivity 1-770253-0 Universal MATE-N-LOK II Socket

MPN1-770253-0
Active

TE Connectivity Universal MATE-N-LOK II socket contact, order code 1-770253-0, 18-24 AWG, gold plating 30.0µin (0.76µm), crimp termination, socket, Bulk.

$2.1400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-770253-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-770253-0 specifications
ParameterValue
SeriesUniversal MATE-N-LOK II
Wire gauge18-24 AWG
PackageBulk
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Crimp socket for Universal MATE-N-LOK II housings

The 1-770253-0 is a gold-plated socket contact in TE's Universal MATE-N-LOK II series, accepting 18-24 AWG wire with a crimp termination.

Series siblings at different wire gauges

Within the Universal MATE-N-LOK II family, the 1-770253-0 (18-24 AWG socket, gold) sits alongside the 1-1326032-0 (16 AWG socket, tin) and the 929989-8 (17-20 AWG socket, tin) — wire gauge and plating are the selection variables; the crimp termination and housing compatibility are shared across the series.
