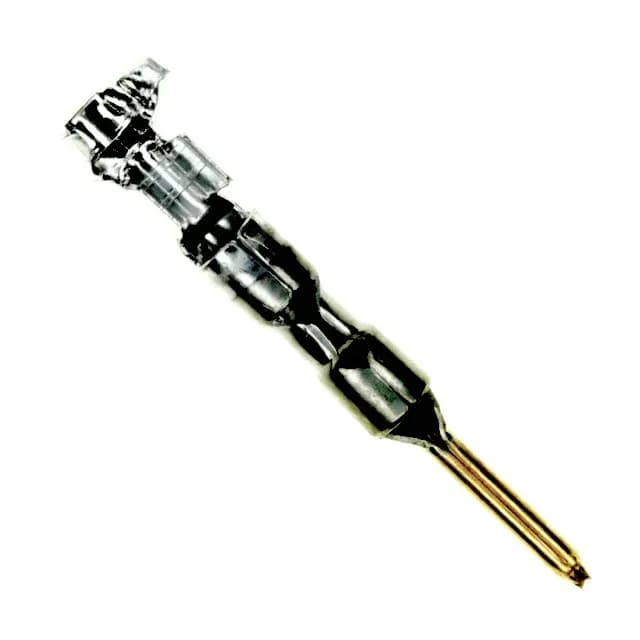

TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK II crimp pin, order code 1-794228-0, 18-22 AWG, gold contact finish 30.0µin (0.76µm), crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK II |
| Wire gauge | 18-22 AWG |
| Package | Bulk |
| Pin or socket | Pin |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-794228-0 is a crimp pin from the Mini-Universal MATE-N-LOK II series, accepting 18-22 AWG wire.
Stamped and formed construction, crimp termination — the wire barrel crimps onto the stripped conductor, and the insulation barrel grips the jacket.
This thickness suits applications requiring stable contact resistance over multiple mating cycles.
18-22 AWG wire. The crimp termination accommodates both the conductor and insulation barrels.
