TE Connectivity AMP Connectors 1-794615-2 — Connector Housings

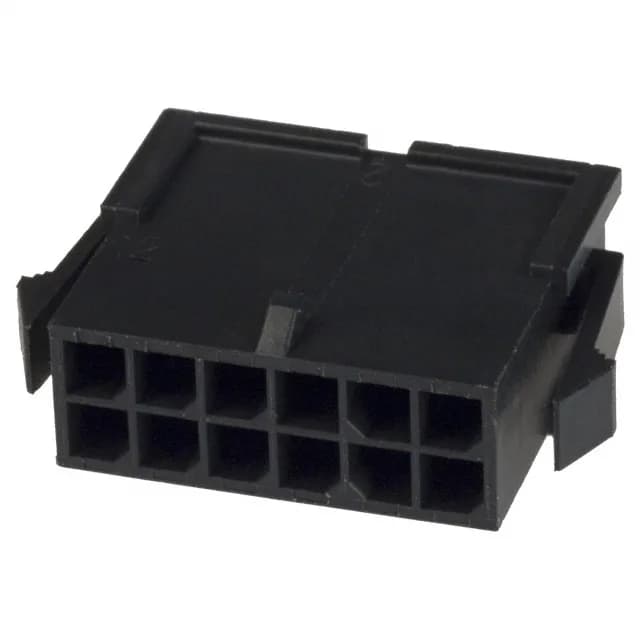

TE Micro MATE-N-LOK 1-794615-2, 12-Pos Plug Housing, 3.00mm

MPN1-794615-2
Active

TE Connectivity Micro MATE-N-LOK plug housing, 1-794615-2, 12 positions, 2 rows, 0.118" (3.00mm) pitch, panel mount snap-in, locking ramp, crimp termination, black polyamide, -40°C to 105°C.

$0.8200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794615-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-794615-2 specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions12

Product details

12-Position Micro MATE-N-LOK Plug Housing at 3.00mm Pitch

The TE Connectivity 1-794615-2 is a 12-position plug housing from the Micro MATE-N-LOK series, built on a 0.118" (3.00mm) pitch in a dual-row layout.

This housing accepts the Micro MATE-N-LOK male crimp terminals, which must be sourced as a separate line item. For a 12-position plug, that means 12 terminals plus the matching receptacle housing and its female contacts.

Locking Ramp and Panel Mount for Field-Duty Retention

The panel mount, snap-in style lets you fix the housing to a cutout before wiring, which keeps the connector stationary during crimp termination and mating. No board footprint needed; this is a wire-to-wire or wire-to-panel interconnect.

Frequently asked questions

Does the 1-794615-2 housing include contacts?

No — the listing explicitly states contacts are not included. You must order the Micro MATE-N-LOK male crimp terminals separately, one per position.

What is the mating header for 1-794615-2?

The 1-794615-2 is a plug housing that mates with the matching Micro MATE-N-LOK receptacle housing of the same 12-position, 2-row, 3.00mm pitch configuration. The receptacle side uses female socket crimp terminals.
