TE Connectivity AMP Connectors 1-794617-4 — Connector Housings

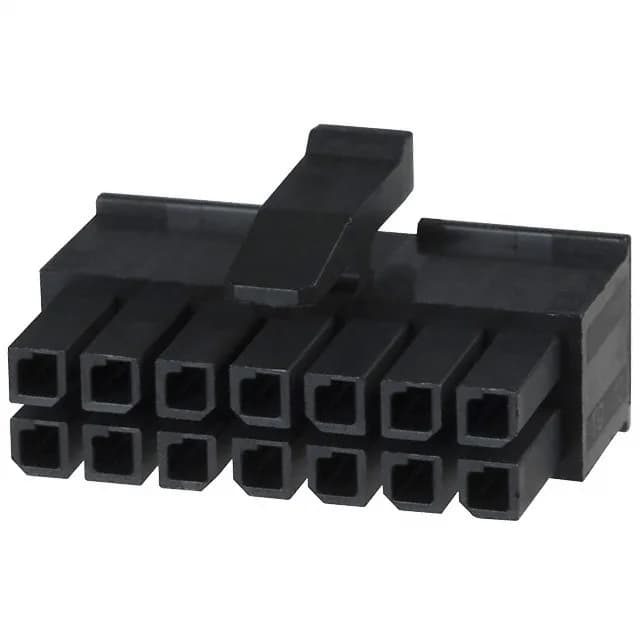

TE 1-794617-4 Micro MATE-N-LOK Receptacle, 14 Pos, 3.00mm

MPN1-794617-4
Active

TE Connectivity Micro MATE-N-LOK receptacle housing, 1-794617-4, 14 positions, 2 rows, 3.00mm pitch, free-hanging in-line, latch lock, crimp termination, black PA66, -40 to 105°C.

$0.6300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794617-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-794617-4 specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions14

Product details

14-Circuit Wire-to-Board Housing

Crimp Termination — Contacts Sold Separately

Order the crimp socket terminals separately, then insert them into the 14 cavities.

Mating Header and Fit Check

The 1-794617-4 mates with the Micro MATE-N-LOK pin header that shares the same 3.00 mm pitch and 14-position, 2-row layout — the through-hole vertical header (TE 1-794616-4) or the right-angle version (TE 1-794617-0) are the direct mates. The 2-row arrangement keeps the connector width manageable for a 14-way harness.

That range covers automotive cabin and engine-adjacent compartments, industrial cabinet interiors, and outdoor telecom enclosures — anywhere the connector sits unpowered on the shelf or carries current under hood.

Frequently asked questions

What part number mates with 1-794617-4?

Buyers need the pin header to complete the connection.

How much does 1-794617-4 cost?

Sourcing buyers compare prices across distributors.

Where can I buy 1-794617-4 in stock?

Availability drives urgency for production.

Is 1-794617-4 obsolete or discontinued?

Lifecycle status determines if design can continue or needs replacement.

What contacts are used with 1-794617-4?

Users need the correct female socket contacts, which are sold separately.

What is the equivalent of 1-794617-4 from Molex or JST?

Engineers often need a drop-in replacement from another brand.
