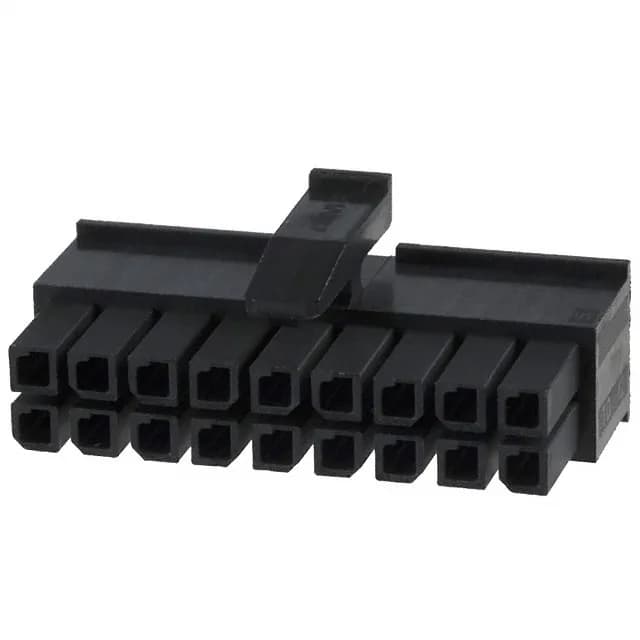

TE Connectivity Micro MATE-N-LOK receptacle housing, 1-794617-8, 18 positions, 0.118" (3.00mm) pitch, 2 rows, free-hanging (in-line), latch lock, black PA66, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Row spacing | 0.118\" (3.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 18 |
This is a housing only — no contacts, no terminals. Don't let the 18-position count fool you into thinking it's a ready-to-mate assembly.
Both the pitch and row spacing are 0.118" (3.00mm). That's a square grid — the contacts sit on a 3.00mm x 3.00mm matrix. For the harness builder, that means the mating header or plug must match that same grid.
No, the 1-794617-8 is a housing only — contacts are not included. You must order the matching Micro MATE-N-LOK crimp socket terminals separately.
The pitch is 0.118" (3.00mm) for both contact spacing and row spacing, forming a 3.00mm x 3.00mm grid.
Yes, it is ROHS3 compliant.
