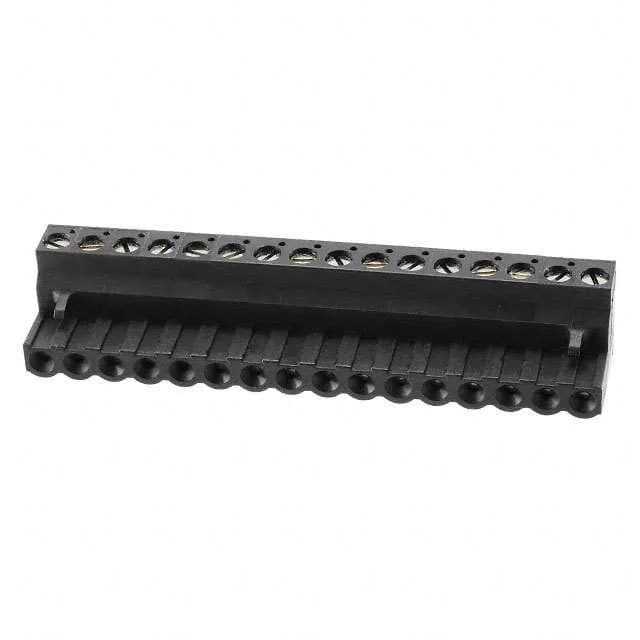

TE Connectivity AMP Connectors Buchanan series, 1-796635-6, Plug, Female Sockets, 16 positions, 0.200" (5.08mm) pitch, Free Hanging, Screw - Rising Cage Clamp, 15 A, 300 V, Black, Bulk
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 16 |
| Positions per level | 16 |
| Contact mating finish | Tin |
The 1-796635-6: This is a 16-position plug from the Buchanan series, terminated with a screw-rising cage clamp — rated 15 A at 300 V. The 0.200" (5.08 mm) pitch matches the standard Buchanan header footprint, so the board side is already defined if you're working from a BOM that calls out this series. The plug accepts wire from 12 AWG down to 30 AWG (0.05–3 mm²), and the clamp torque is set at 0.79 Nm (7.0 lb-in).
0.200" (5.08 mm).
Yes, ROHS3 compliant.
0.79 Nm (7.0 Lb-In).
Free hanging (in-line), 180° wire entry.
