TE Connectivity AMP Connectors 1-796636-2 — Header Plugs & Sockets

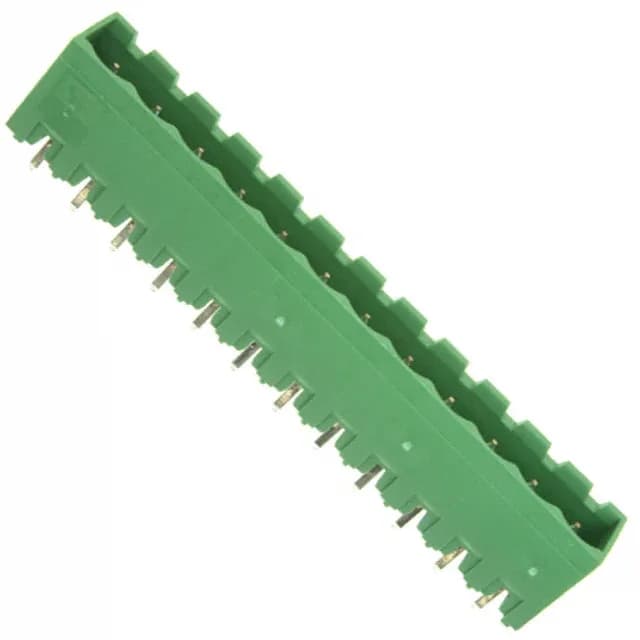

1-796636-2 TE Connectivity 12 Pos 5.08mm Header

MPN1-796636-2
Active

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, Header, Male Pins, Shrouded (4 Side), 12 positions, 0.200" (5.08 mm) pitch, through-hole, vertical, tin-plated, 15 A, 300 V, UL94 V-0, green, bulk.

$3.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTermi-Blok, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-796636-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesTermi-Blok, Buchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.472\" (12.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

1-796636-2 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions12
Positions per level12
Contact mating finishTin

Product details

The 1-796636-2: This is a 12-position, single-level shrouded header from the Termi-Blok, Buchanan series. The 15 A current rating at 300 V (UL) covers most control cabinet and industrial power distribution needs.

Mounting and termination for the board layout

Through-hole mounting with solder termination. The vertical header orientation means the wire entry is perpendicular to the PCB — plan for clearance above the board. Contact tail length is 0.138" (3.50 mm). Insulation height is 0.472" (12.00 mm) — the shroud adds height above the board surface. Operating temperature range is -40°C to 110°C, covering most indoor and outdoor cabinet environments.

Frequently asked questions

What is the pitch and current rating of 1-796636-2?

Pitch is 0.200" (5.08 mm). Current rating is 15 A per UL. Voltage rating is 300 V per UL.

Is 1-796636-2 RoHS compliant?

Yes, it is ROHS3 compliant.

How can I order 1-796636-2?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
