TE Connectivity AMP Connectors 1-796644-0 — Header Plugs & Sockets

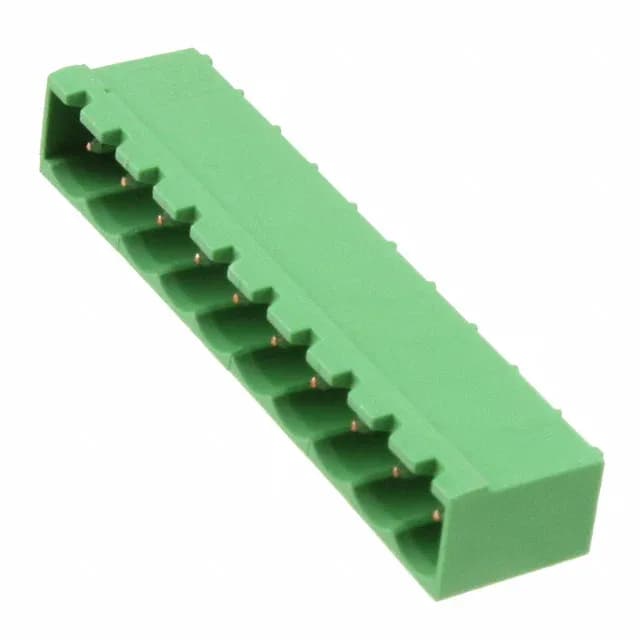

1-796644-0 TE Connectivity 10-Pos Right-Angle Header 5mm

MPN1-796644-0
Active

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, Header, Male Pins, Shrouded (4 Side), 10 positions, 0.197" (5.00mm) pitch, 1 level, right-angle, through hole, solder termination, 15 A, 300 V, UL94 V-0, green housing, bulk package.

$3.4700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-796644-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesTermi-Blok, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-796644-0 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesTermi-Blok, Buchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.329\" (8.36mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)

All specifications

1-796644-0 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions10
Positions per level10
Contact mating finishTin

Product details

Right-angle shrouded header for 5.00 mm terminal blocks

The 1-796644-0: This 10-position header mates with the matching Termi-Blok or Buchanan plug to create a wire-to-board connection at 5.00 mm pitch. Rated 15 A at 300 V per UL, with a -40°C to 110°C operating range and a UL94 V-0 polyamide housing.

Shrouded design and keying for vibration resistance

This matters in panel wiring where connectors are frequently unmated and re-mated.

Active production and RoHS compliance

Confirm the mating plug part number and the PCB hole pattern before committing the line.

Frequently asked questions

What is the pitch and position count of 1-796644-0?

The pitch is 0.197" (5.00 mm) with 10 positions in a single level. The header is keyed by the four-sided shroud and mates with a 10-position plug of the same series.

Is 1-796644-0 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's declaration.
