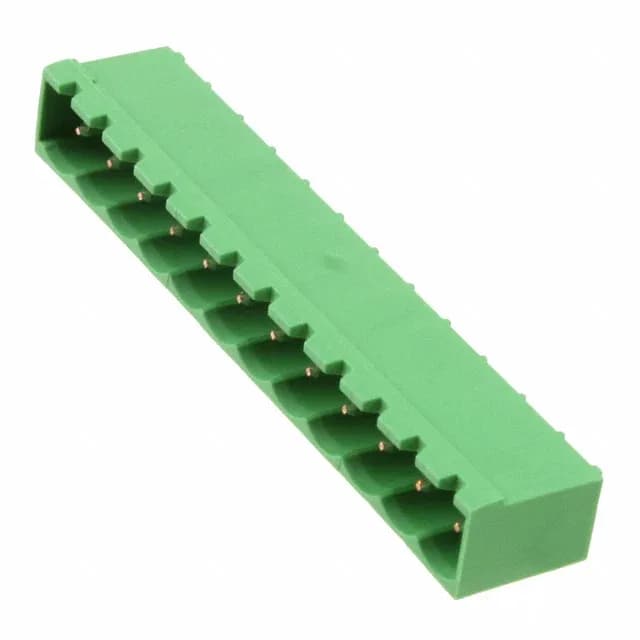

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, Header, Male Pins, Shrouded (4 Side), 12 Positions, 0.197" (5.00mm) Pitch, Through Hole, Right Angle, 15 A, 300 V, Tin Contacts, UL94 V-0, Green, Bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
Rated 15 A at 300 V, it handles typical industrial control and power distribution loads, and the 5.00 mm pitch accommodates 12 AWG field wiring.
RoHS3 compliant, with a UL94 V-0 polyamide housing rated for -40°C to 110°C operation.
The header has 12 positions in a single row. The pinout is 1:1 – each pin corresponds to the same position on the mating plug. No internal connections or strapping.
