TE Connectivity AMP Connectors 1-84953-2 — FFC / FPC Cable Assemblies

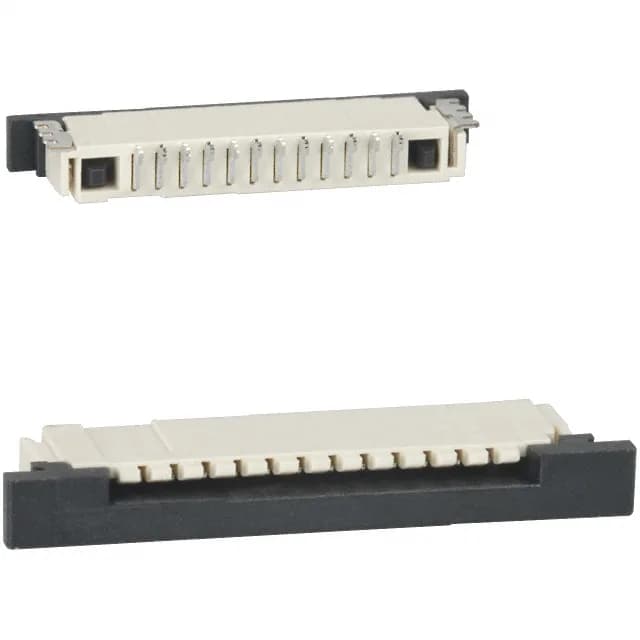

1-84953-2 TE Connectivity FPC Connector, 12 Pos, 1mm Pitch

MPN1-84953-2
Active

TE Connectivity AMP 1-84953-2, FPC connector, 12 positions, 0.039" (1.00mm) pitch, top contact, ZIF slide lock, SMT right-angle, tin-plated phosphor bronze contacts, 1 A, 200 V, -40°C ~ 85°C.

$0.5647Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-84953-2 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Top
Voltage rating200V
Current rating1A
Operating temperature-40°C ~ 85°C
Housing colorNatural
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled

All specifications

1-84953-2 additional specifications
ParameterValue
Height above board0.101\" (2.56mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions12
Contact finish thickness78.7µin (2.00µm)

Product details

SMT footprint and board fit

Mated height above board is 0.101" (2.56 mm), which sets the clearance under the FPC bend radius. Accepts FPC thickness of 0.30 mm, standard for many flat-flex cable assemblies.

Mating and cable assembly notes

Mates with a standard 0.30 mm thick, 12-conductor FPC cable with 1.00 mm pitch, top-contact pattern. The slide-lock actuator provides positive retention without requiring a secondary latch or adhesive. Housing is natural LCP, glass-filled, rated UL94 V-0; actuator is black glass-filled nylon.

Frequently asked questions

Does 1-84953-2 have a locking mechanism?

Yes, it uses a slide-lock actuator for ZIF (zero insertion force) operation, which locks the FPC in place after insertion.

Can I use 1-84953-2 for a 12-conductor, 1 mm pitch FPC?

Yes, the connector has 12 positions on 1.00 mm pitch and accepts 0.30 mm thick FPC, matching a standard 12-conductor flat-flex cable.

Is 1-84953-2 RoHS compliant?

Yes, it is ROHS3 Compliant per the manufacturer's listing.
