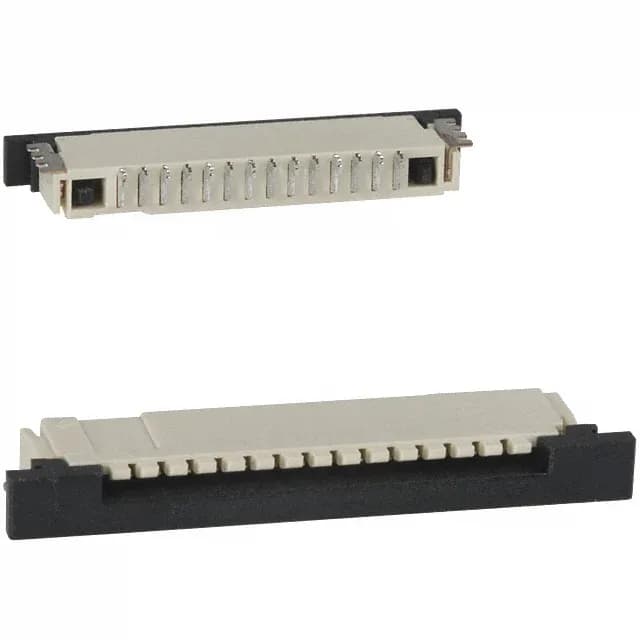

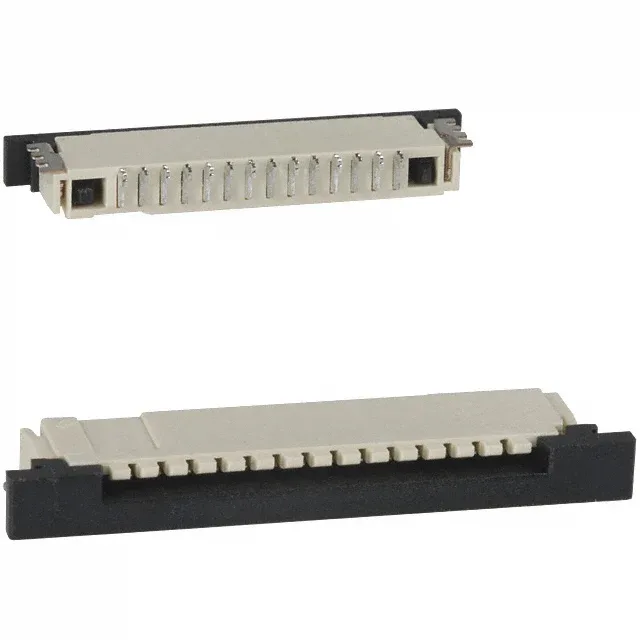

TE Connectivity AMP, 1-84953-4, FPC connector, 14 positions, 1.00 mm pitch, right-angle SMT, top contact, ZIF slide lock, 1 A, 200 V, -40°C to 85°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Height above board | 0.101\" (2.56mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 14 |
| Contact finish thickness | 78.7µin (2.00µm) |
It uses a top-contact ZIF slide-lock actuator to secure the FPC without insertion force.
Tin-plated phosphor bronze contacts (78.7 µin finish) suit moderate mating-cycle applications where gold is not required.
Yes, the connector is specified for 0.30 mm FPC thickness, matching the standard flex circuit dimension for this pitch class.
