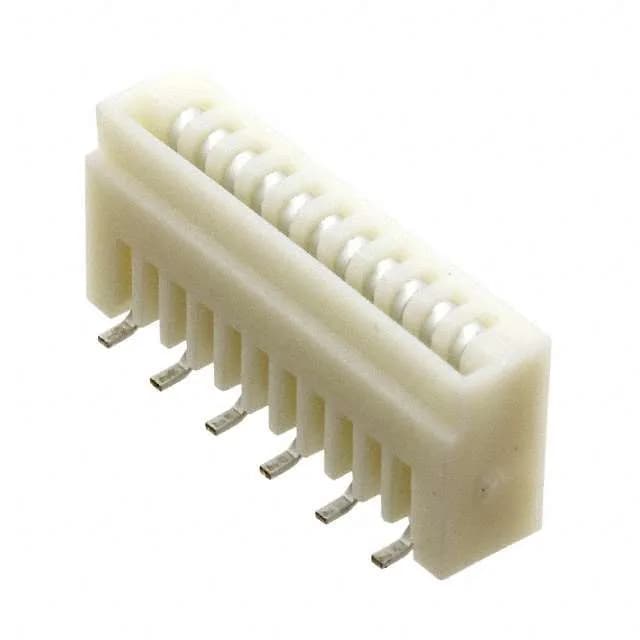

TE Connectivity AMP Connectors 1-84982-1, FFC/FPC connector, 11 positions, 0.039" (1.00mm) pitch, vertical SMD, tin-plated phosphor bronze contacts, 1A current rating, 125V voltage rating, -20°C to 85°C operating range.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Beige |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 11 |
The 1-84982-1 is an 11-position, 1.00mm pitch FFC/FPC connector in a vertical SMD package. The 1A per-contact current rating and 125V voltage rating suit signal-level interconnects inside enclosures where the operating temperature stays between -20°C and 85°C. The tin-plated phosphor bronze contacts mate with a 0.30mm-thick FFC, single-sided contact pattern. The beige glass-filled nylon housing stands 5.59mm above the board.
The pitch is 0.039" (1.00mm) and the connector has 11 positions.
