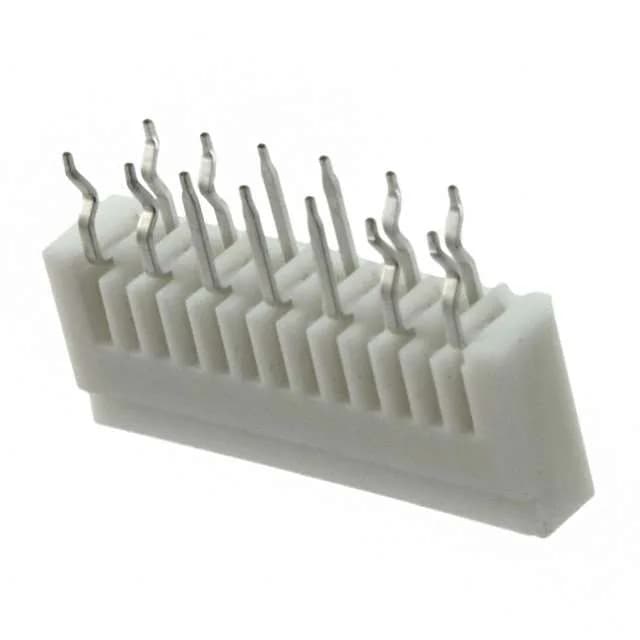

TE Connectivity AMP Connectors 1-84984-3, FFC/FPC vertical connector, 13 positions, 1.00 mm pitch, tin-plated phosphor bronze contacts, through-hole kinked pin termination, rated 1 A per contact at 125 V, -20°C to 85°C operating range.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | White |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Termination | Kinked Pin |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 13 |
The 0.30 mm FFC/FPC thickness acceptance matches standard flat-flex cables used in display and sensor interfaces. The white PBT housing is glass-filled for dimensional stability during wave solder.
Tin contact finish suits applications with limited reconnect cycles. The 1 A current rating is typical for signal lines — derate above 85°C per the product drawing.
The 1-84984-3 has 13 positions on 1.00 mm pitch. It accepts 0.30 mm thick FFC/FPC cables.
