Pitch, position count, and temperature range
The 1-87175-4: Rated for -65°C to 105°C, covering automotive underhood and industrial cabinet environments without derating.
ROHS3 compliant; black glass-filled polyester insulation material.
1-87175-4 TE Connectivity AMPMODU 6-Pos Receptacle Housing
MPN1-87175-4
Active

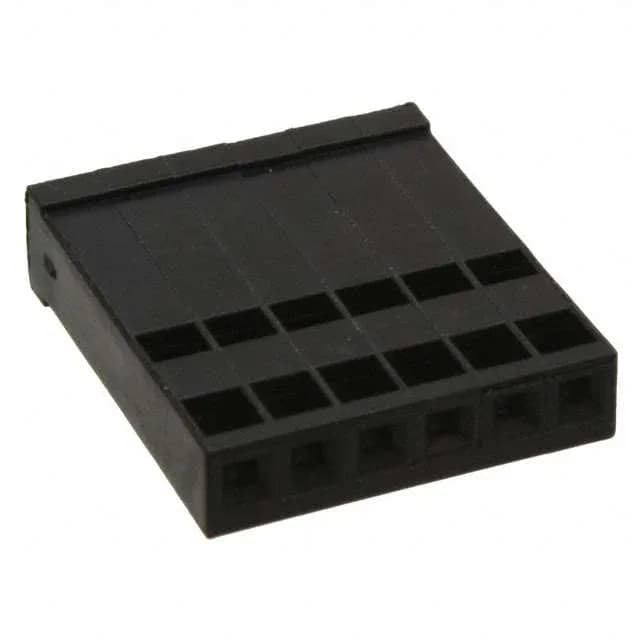

TE Connectivity AMPMODU, receptacle housing, 6 positions, 0.100" (2.54 mm) pitch, single row, free hanging, crimp termination, black polyester glass-filled, -65°C to 105°C, ROHS3 compliant, contacts not included.
$2.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
Product details
Frequently asked questions
What contacts fit the 1-87175-4 receptacle housing?
The specific TE crimp terminal part number depends on wire gauge; consult the AMPMODU series crimp terminal selection for 0.100" pitch housings.
Is 1-87175-4 RoHS compliant?
Yes, it is ROHS3 compliant.
Does the 1-87175-4 come with contacts?
No, contacts are not included.
