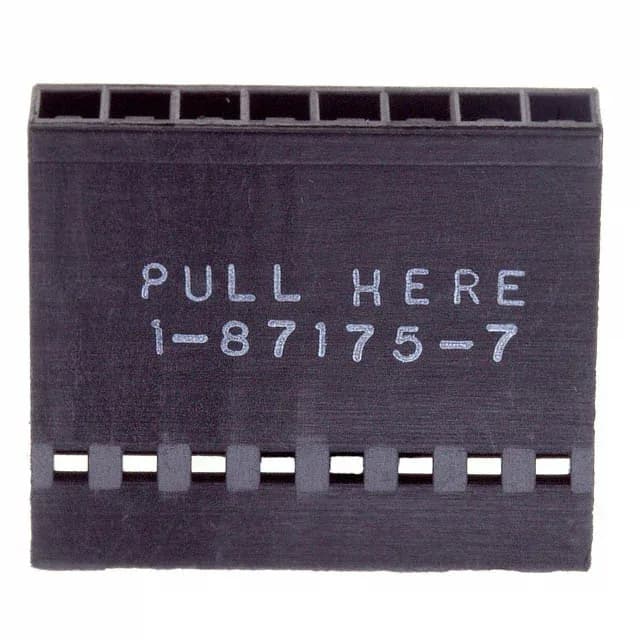

TE AMPMODU receptacle housing, 1-87175-7, 8 positions, 0.100" (2.54mm) pitch, single row, free-hanging, crimp termination, black, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 8 |
Because the housing ships empty, the build requires the matching AMPMODU female crimp socket terminals. The single-row, 8-position layout keeps the wire-to-board connection compact. The crimp termination gives you field-replaceable contacts and lets you use the exact wire gauge your harness calls for.
It is a current-production part with no announced end-of-life.
1-87175-7 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.
No — the listing explicitly notes Contacts Not Included. You must order the AMPMODU female crimp socket terminals separately.
0.100" (2.54mm) pitch, 8 positions, single row.
