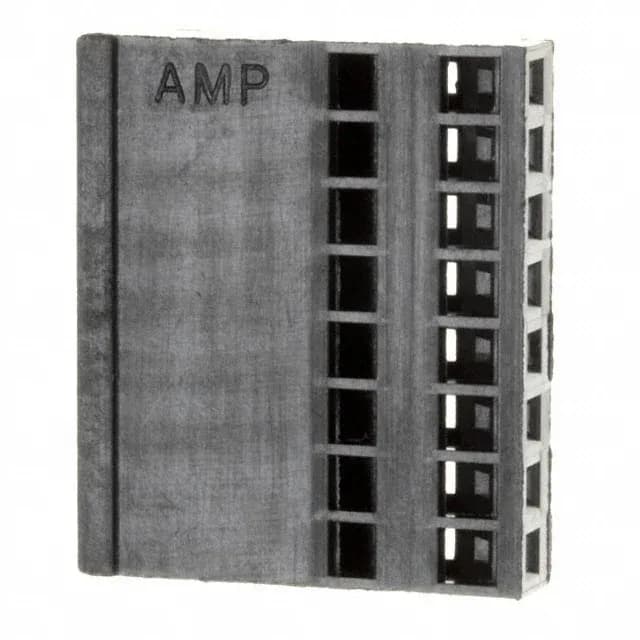

8-Position AMPMODU Receptacle Housing at 0.100" Pitch
The 1-87175-8: The housing is black and ships empty; the crimp sockets that populate it are ordered separately.
Pitch, Row Count, and Mating Half
This mates with the corresponding AMPMODU header, typically a 0.100" pitch breakaway or shrouded header with 8 pins in a single row. The housing is not polarized or keyed by default; orientation is set by the header's own keying features or by the harness routing. The free-hanging design means no board-mount retention — the crimp terminals lock into the housing cavities, and the housing relies on the header's friction or latch for mated retention.
