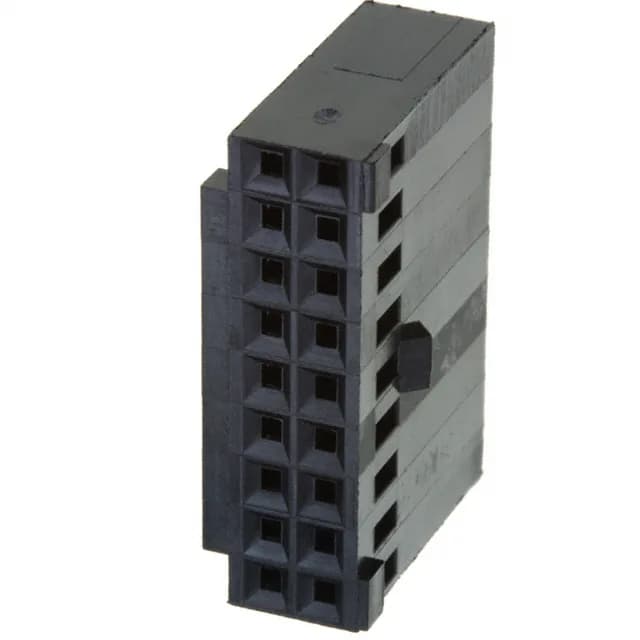

TE Connectivity AMPMODU Mod IV receptacle housing, 1-87631-3, 18 positions, dual-row, 0.100" (2.54mm) pitch, crimp termination, free-hanging, detent lock, black, -65°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 18 |
The TE Connectivity 1-87631-3 is an 18-position, dual-row receptacle housing in the AMPMODU Mod IV series. It accepts female socket crimp contacts and terminates to wire in a free-hanging (in-line) configuration.
The matching crimp terminals (female socket) are ordered separately and installed into the housing cavities before mating.
No. The 1-87631-3 is a receptacle housing only — contacts are not included. The female socket crimp terminals for the AMPMODU Mod IV series must be ordered separately and crimped onto the wire before insertion into the housing.
Yes. The detent lock engages with the corresponding ramp on the header for positive retention.
