TE Connectivity AMP Connectors 1-87631-6

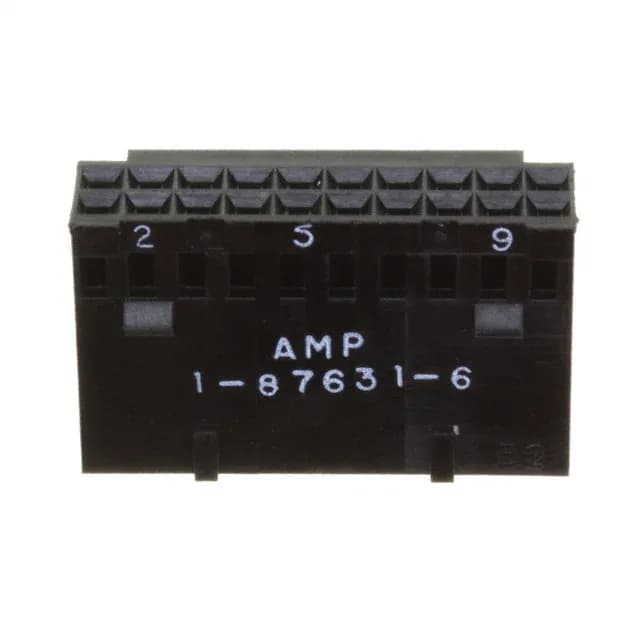

TE Connectivity 1-87631-6 AMPMODU Mod IV Receptacle Housing

MPN 1-87631-6
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 1-87631-6, 20 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging, detent lock, crimp termination, black thermoplastic, -65°C to 105°C.

$4.2500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-87631-6 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeDetent Lock
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-Position AMPMODU Mod IV Receptacle Housing — What You're Getting

Pitch and Row Spacing — Same 0.100" Grid

Both the pitch between positions and the row spacing are 0.100" (2.54mm). That means the contact cavities are laid out on a uniform square grid — 10 positions per row, two rows. This is the same footprint as the classic AMPMODU headers and receptacles, so it mates directly with any standard 0.100" dual-row header of the same position count. No footprint surprises when you're laying out the board or building the harness.

The housing ships empty. The detent lock engages with the header's ramp, so the contact retention is in the housing, not the terminal itself. Always confirm the contact part number against your wire size before committing the BOM.

No stock-holding claim, no immediacy promise — just a straight answer: it's available, we'll quote it.
