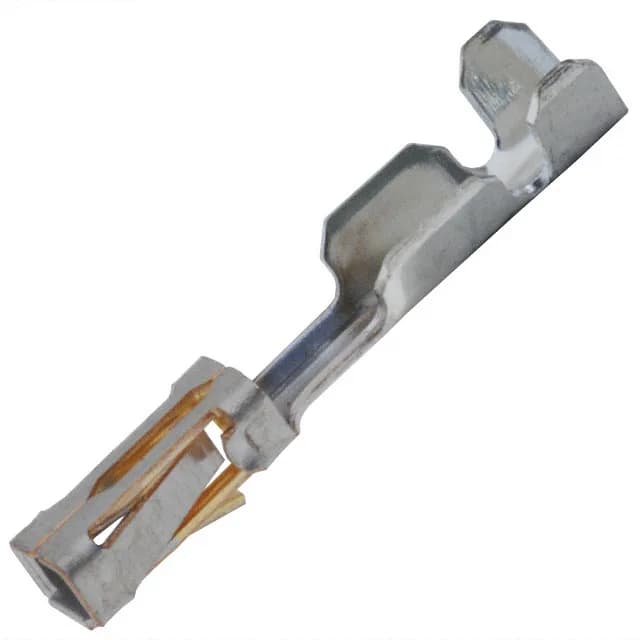

TE Connectivity AMP Connectors AMPMODU Mod IV crimp socket, order code 1-87756-8, 22-26 AWG, socket contact, gold finish 30.0µin (0.76µm), crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Wire gauge | 22-26 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-87756-8 is a gold-plated socket contact in TE's AMPMODU Mod IV series, crimp-terminated for 22-26 AWG wire.
The 1-87756-8 accepts 22-26 AWG with gold plating, while the 1-1326032-0 socket takes 16 AWG with tin plating and the 929989-8 socket handles 17-20 AWG with tin plating — the gold finish on the 1-87756-8 suits applications where corrosion resistance or higher mating-cycle life is required.
The 1-87756-8 is available to order in bulk packaging. Request a quote for current pricing and lead time.
No. The 1-87756-8 accepts 22-26 AWG wire, while the 1-1326032-0 is a 16 AWG socket with tin plating — the wire gauge range and contact finish differ, so a direct drop-in is not possible without rewiring.
