TE Connectivity AMP Connectors 1-917266-3

TE Dynamic D-3200 1-917266-3

MPN 1-917266-3
Active

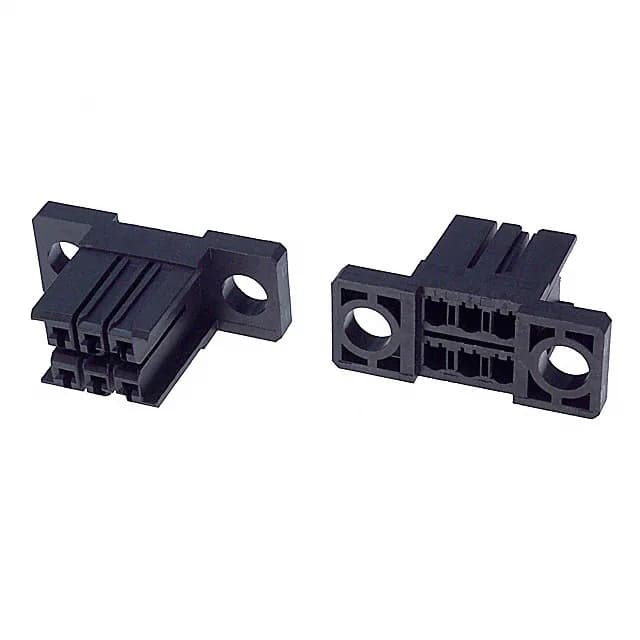

TE Connectivity Dynamic D-3200 receptacle housing, 1-917266-3, 6 positions, 2 rows, 5.08 mm pitch, 0.300" row spacing, panel mount, crimp termination, black thermoplastic, polarizing key, contacts not included.

$1.3900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-917266-3 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingPanel Mount
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.300\" (7.62mm)
Rows2
Contact terminationCrimp
Positions6

Product details

Receptacle Housing for Power-Grade Harnesses

The TE Connectivity Dynamic D-3200 1-917266-3 is a 6-position, 2-row receptacle housing on a 5.08 mm pitch — a wide, power-grade spacing that gives each circuit decent creepage for industrial voltages. It's a panel-mount shell with a polarizing key to keep the mating header oriented correctly, and it accepts crimp terminals (sold separately). This is the housing half of the interconnect; you'll need the matching Dynamic D-3200 header and the correct crimp contacts to build a complete wire-to-board or wire-to-wire harness.

The 5.08 mm pitch is wide enough that you can route 14–18 AWG wire without crowding adjacent contacts — the creepage distance between adjacent pins is generous, so the housing can handle the voltage rating of the Dynamic D-3200 series without tracking. Six positions in two rows means the footprint on the panel is compact for the circuit count; the 0.300" row spacing gives you room for a panel cutout that doesn't weaken the mounting surface. The polarizing key is a molded-in feature that prevents a reversed mate — a real time-saver when you're wiring a multi-connector panel and can't see the keyway.

Panel Mounting and Termination

This housing mounts through a panel cutout — the flange sits flush against the panel face, and the integral latches on the sides lock into the mating header. The crimp terminals are field-installable with a standard hand tool; the housing itself has no contacts, so you load the terminals after crimping.

MPN
1-917266-3
