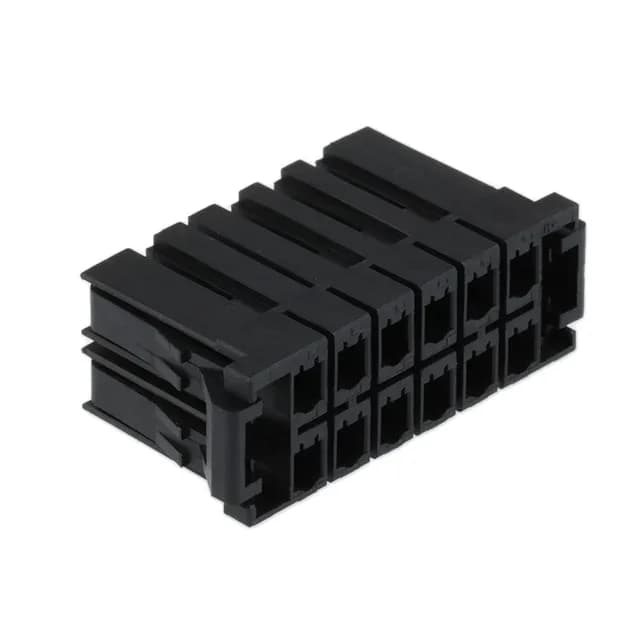

TE Connectivity AMP Connectors 1-917659-6

TE Dynamic D-3200 1-917659-6, 12-Position Receptacle Housing

MPN 1-917659-6
Active

TE Dynamic D-3200 series receptacle housing, 1-917659-6, 12 positions, 2 rows, 0.200" (5.08mm) pitch, 0.300" (7.62mm) row spacing, free hanging, crimp termination, black thermoplastic housing, polarizing key, contacts not included.

$2.7300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-917659-6 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.300\" (7.62mm)
Rows2
Contact terminationCrimp
Positions12

Product details

What This Housing Is and What It Carries

Pitch and Contact Spacing

The 0.200" (5.08mm) pitch between contacts and 0.300" (7.62mm) row spacing are generous by board-level standards — the wide contact centers give ample room for the crimp barrel and wire insulation, and the creepage distance supports higher-voltage circuits without tracking across the housing surface.

This receptacle mates with a Dynamic D-3200 series pin header — the polarizing key prevents mismating. The free-hanging mount means no panel cutout or PCB footprint is required; the housing locks into the header via the integral latch.

How It Compares to a Same-Series Sibling

The 12-position 1-917659-6 sits between the 6-position 1-2069882-6 and larger-count housings in the Dynamic D-3200 line. Both share the 0.200" (5.08mm) pitch, 2-row layout, free-hanging mount, and crimp termination — the only functional difference is the position count. The 6-position sibling (natural color) is a direct fit for a 6-circuit harness; the 12-position covers a 12-circuit BOM line. No other spec delta affects selection.

MPN
1-917659-6
