TE Connectivity AMP Connectors 1-917807-2 — Connector Housings

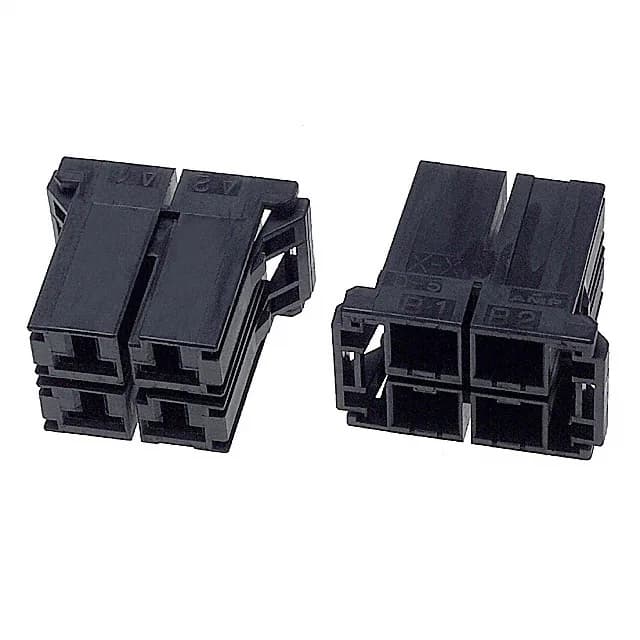

TE Dynamic D-5200 1-917807-2, 4 Pos Receptacle Housing

MPN1-917807-2
Active

TE Connectivity Dynamic D-5200 receptacle housing, 1-917807-2, 4 positions, 2 rows, 0.400" (10.16mm) pitch, free-hanging (in-line), crimp termination, black thermoplastic polyester glass-filled housing, -55°C to 105°C.

$3.1100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-5200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-917807-2 specifications
ParameterValue
SeriesDynamic D-5200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.400\" (10.16mm)
PackageBulk
Row spacing0.400\" (10.16mm)
Rows2
Contact terminationCrimp
Positions4

Product details

The 10.16 mm pitch is the first clue — that spacing is wide enough for large-gauge crimp terminals and the creepage needed at elevated voltage, not the 2.54 mm or 5.08 mm you see on signal headers.

You must order the Dynamic D-5200 female crimp socket terminals separately. The header carries the male pins; this housing carries the female sockets. The two rows at 10.16 mm row spacing give the 4 positions a 2x2 layout, which keeps the connector compact for a power-grade part.

If your harness needs to pass through a bulkhead or panel, the 1-2069332-1 is the same 4-position, 10.16 mm pitch D-5200 receptacle but with a mounting flange for panel-mount installation. Same row spacing, same crimp termination, same natural colour. The 1-917807-2 stays in the harness; the 1-2069332-1 bolts to the enclosure wall. Choose the free-hanging version when the connector lives on a flying lead, and the panel-mount when it needs a fixed chassis entry point.

Frequently asked questions

Where can I buy 1-917807-2?

Buyers need to know immediate availability and source to place an order.

Does 1-917807-2 come with contacts included?

Clarifies that contacts are sold separately; critical for BOM completeness.

What is the price of 1-917807-2?

Price directly influences purchasing decision and budget planning.

Is there an equivalent to 1-917807-2 from a different brand?

Alternative sourcing options when TE is out of stock or too expensive.

What is the lead time for 1-917807-2?

Lead time affects production schedules and delivery commitments.

Can 1-917807-2 be panel mounted?

Mounting type (free hanging vs panel) dictates installation method and design constraints.
