TE Connectivity AMP Connectors 1-926476-0

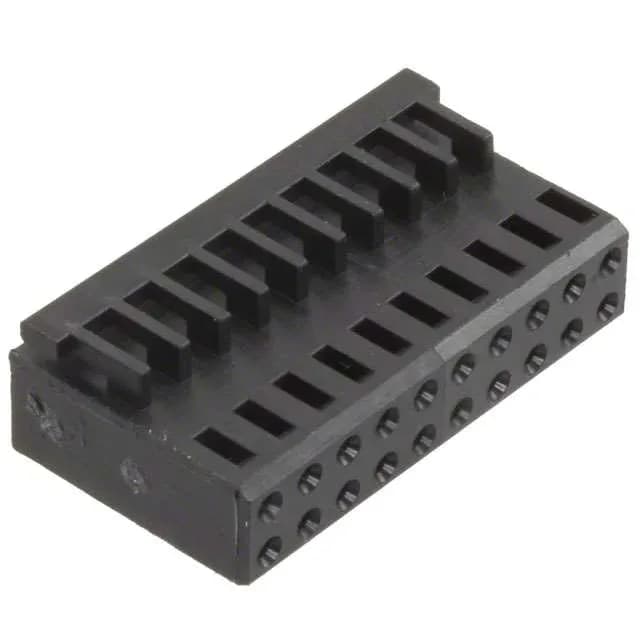

TE 1-926476-0 AMPMODU Mod IV Receptacle Housing, 20 Pos

MPN 1-926476-0
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 1-926476-0, 20 positions dual-row, 0.100" (2.54mm) pitch, free hanging, crimp termination, black thermoplastic, -65°C to 105°C.

$2.7000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-926476-0 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-Position Dual-Row Housing for 2.54mm Pitch Harnesses

The black thermoplastic body handles an operating range of -65°C to 105°C, which puts it beyond the typical commercial 85°C ceiling and into territory suited for industrial cabinets or outdoor telecom enclosures where the ambient temperature swings wider than an air-conditioned rack.

The 1-926476-0 accepts standard AMPMODU Mod IV female crimp contacts (0.100" centerline), which are terminated to discrete wires and then inserted into the housing cavities. On the mating side, it pairs with a 0.100" pitch dual-row header — typically an unshrouded or shrouded AMPMODU Mod IV pin header of the same 20-position count.
