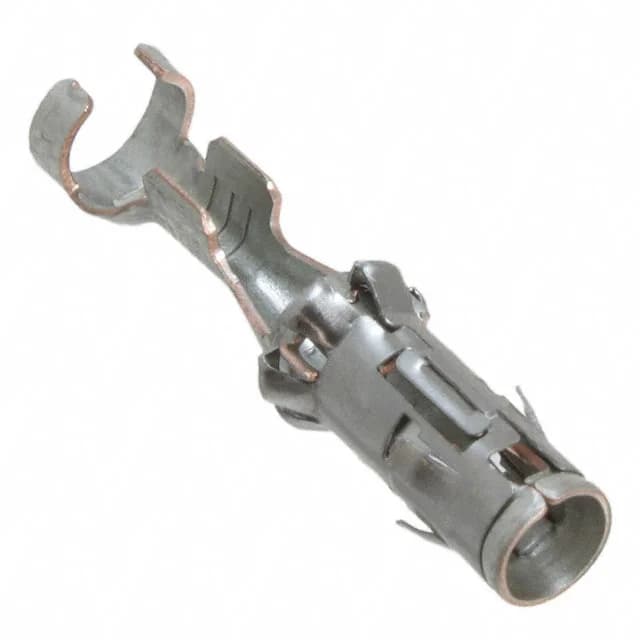

TE Connectivity AMP 2.5mm System crimp socket, order code 1-929974-4, power stamped type, 17-20 AWG (0.5~1.0mm²), silver-plated copper alloy, 118.1µin (3.00µm) contact finish, tin termination finish, insulation support, crimp termination.
| Parameter | Value |
|---|---|
| Type | Power, Stamped |
| Series | 2.5mm System |
| Wire gauge or range - AWG | 17-20 AWG |
| Wire gauge or range - mm2 | 0.5 ~ 1.0mm² |
| Contact material | Copper Alloy |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Insulation Support |
| Contact size | 2.5mm |
| Contact finish | Silver |
| Termination finish | Tin |
| Contact termination | Crimp |
| Contact finish thickness | 118.1µin (3.00µm) |
The 1-929974-4 is the 2.5mm System power stamped socket — 17-20 AWG, silver-plated copper alloy, crimp termination with insulation support.
Crimp termination accepts 17-20 AWG (0.5~1.0mm²) stranded wire. The insulation support feature relieves strain at the crimp barrel exit. Tin termination finish on the crimp barrel — the silver contact finish is on the mating interface only.
