TE Connectivity AMP Connectors 1-962915-2 — Crimp Contacts & Pins

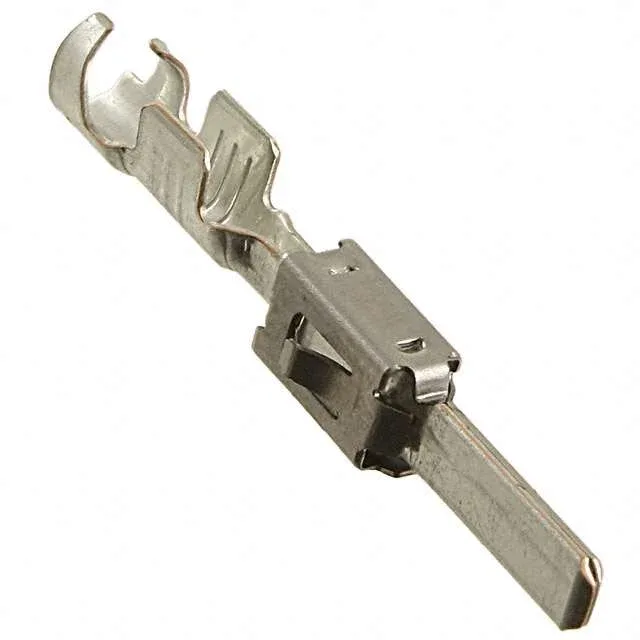

TE MCP 2.8 1-962915-2 Crimp Tab, 18-20 AWG, Silver

MPN1-962915-2
Active

TE Connectivity AMP Connectors MCP 2.8 crimp tab, order code 1-962915-2, 18-20 AWG, tab contact, silver-plated, 118.1µin (3.00µm) finish, crimp termination, Tape & Reel packaging.

$0.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-962915-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMCP 2.8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-962915-2 specifications
ParameterValue
SeriesMCP 2.8
Wire gauge18-20 AWG
PackageTape & Reel (TR) Cut Tape (CT)
Pin or socketTab
Contact finishSilver
Contact terminationCrimp
Contact finish thickness118.1µin (3.00µm)

Product details

MCP 2.8 tab for 18-20 AWG

The 1-962915-2 is a silver-plated tab contact from TE's MCP 2.8 series, designed for 18-20 AWG wire with a crimp termination.

Plating options within MCP 2.8

Within the MCP 2.8 series, the 1-962915-2 (silver, 118.1µin) sits alongside the tin-plated 1-962915-1 (39.4µin) and the gold-plated 1-962915-3 (24.0µin) — all three share the same 18-20 AWG wire range and crimp termination, so the plating choice drives mating cycle life and environmental resistance. For higher current capacity on the same tab geometry, the 1-962916-2 accepts 14-16 AWG wire while retaining the same silver plating thickness.

Frequently asked questions

Will 1-962915-2 drop into a panel specified around 1-962916-2 without rewiring?

No — the 1-962915-2 accepts 18-20 AWG wire, while the 1-962916-2 accepts 14-16 AWG. The tab geometry and crimp barrel differ; rewiring to the correct wire gauge is required.
