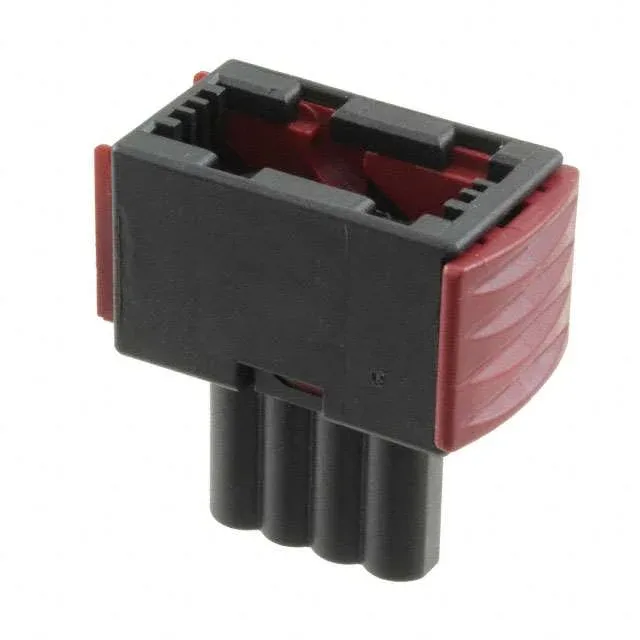

TE Connectivity Junior Power Timer receptacle housing, 1-963207-1, 4 positions, 1 row, 0.197" (5.00mm) pitch, free hanging, crimp termination, sealed, black PBT GF, contacts not included.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Sealed |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The 1-963207-1: Black PBT glass-filled shell — the standard material for engine-bay temperature swings.
The mating plug is the corresponding Junior Power Timer male housing with tab contacts; same 5.00 mm pitch, same single-row layout. The seal lives in the housing interface, so when mated correctly it keeps splash and dust out of the connection. Free-hanging, no board mount — this is a wire-to-wire inline splice or a harness branch-off point.
This housing does not include contacts; you need to specify the correct contact part number to complete the assembly.
To mate with this receptacle housing, you need the corresponding plug housing.
Availability and lead time affect procurement timing and potential order splitting.
Volume pricing impacts BOM cost and sourcing decisions.
Part number variations may indicate different packaging or specifications; buyers need to verify compatibility.
Environmental conditions can affect connector performance in harsh applications.
