TE Connectivity AMP Connectors 1-963749-1 — Crimp Contacts & Pins

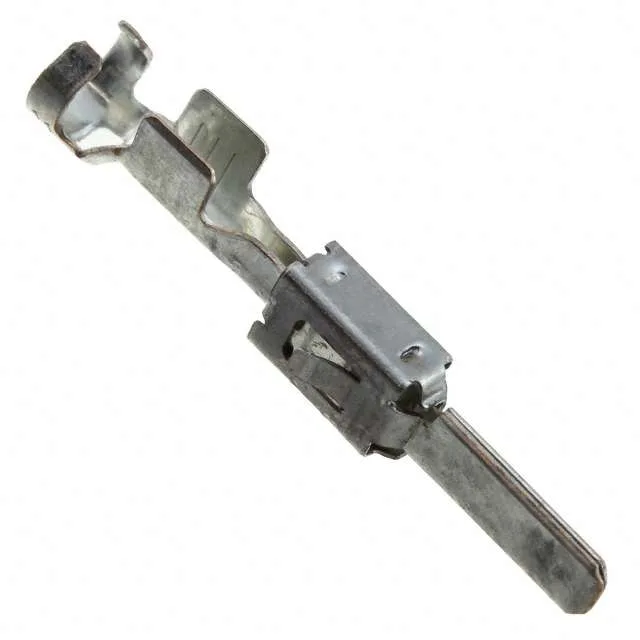

TE 1-963749-1 MCP 2.8 Tab Crimp Contact 14-16 AWG Tin

MPN1-963749-1
Active

TE Connectivity AMP Connectors MCP 2.8 tab crimp contact, order code 1-963749-1, 14-16 AWG, tin-plated, 39.4µin (1.00µm) thickness, crimp termination, bulk package.

$0.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCP 2.8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-963749-1 specifications
ParameterValue
SeriesMCP 2.8
Wire gauge14-16 AWG
PackageBulk
Pin or socketTab
Contact finishTin
Contact terminationCrimp
Contact finish thickness39.4µin (1.00µm)

Product details

What this contact fits

The 1-963749-1 is a tab crimp contact from the TE MCP 2.8 series, designed for 14-16 AWG wire and terminated by crimp.

Wire range and termination

The 14-16 AWG range covers the common power and signal wire sizes in automotive and industrial harnesses — the tab accepts the stripped conductor and the crimp barrel secures the insulation and conductor in one operation. Bulk packaging means the contacts are loose for hand or semi-automatic crimp tooling, not taped for machine feed.

Frequently asked questions

What compliance documentation does TE provide for 1-963749-1?

The contact is ROHS3 compliant. No UL or IEC certification is listed in the manufacturer data.

What wire gauge does 1-963749-1 accept?

The tab crimp contact accepts 14-16 AWG wire.

What is the closest pin-compatible alternative to 1-963749-1 in the MCP 2.8 family?

No pin-compatible alternative is recorded in the manufacturer data. The 1-963749-1 is the tab contact for 14-16 AWG in the MCP 2.8 series; other contacts in the series differ by wire gauge or plating.
